CCC 2024 Day 08: Christmas Tree Popout Card

Step 2) Format the score lines

Some of the pieces of the card have score lines to make it easier to put together.

If you don’t have a scoring stylus or scoring wheel for your Cricut machine (or if you are using the Cricut Joy Xtra), you can delete the score lines.

However, if you do have one, here’s how to format them so that your Cricut knows to score them.

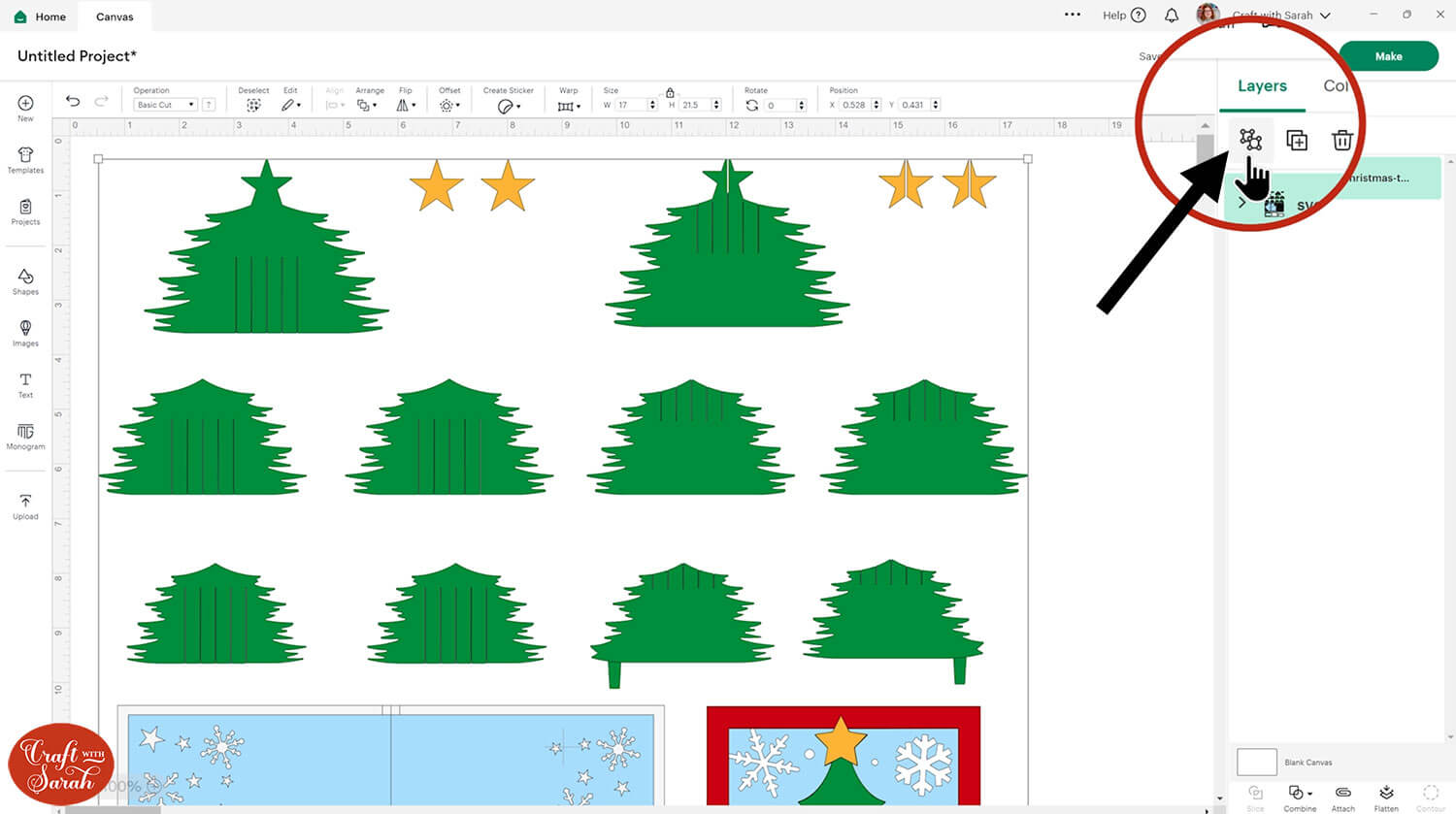

First, click the whole design and then press the Ungroup button at the top of the layers panel to separate out all those layers.

Click away to deselect everything and look down the layers panel until you find the first layer that has an arrow/chevron next to it in the layers panel.

If the group is appearing closed, click the little arrow on the left-side to open it up to see the different layers.

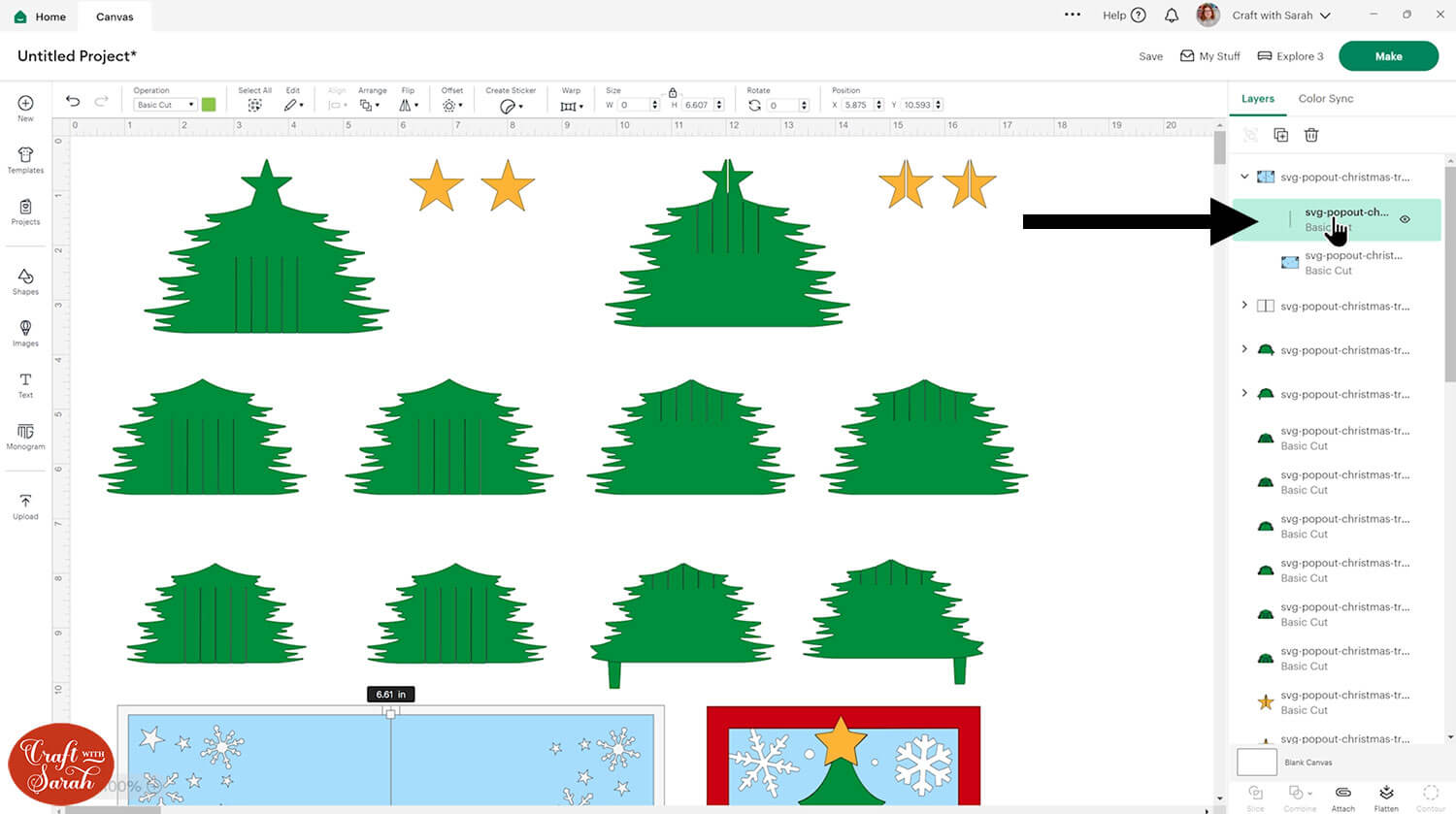

Click the vertical line layer.

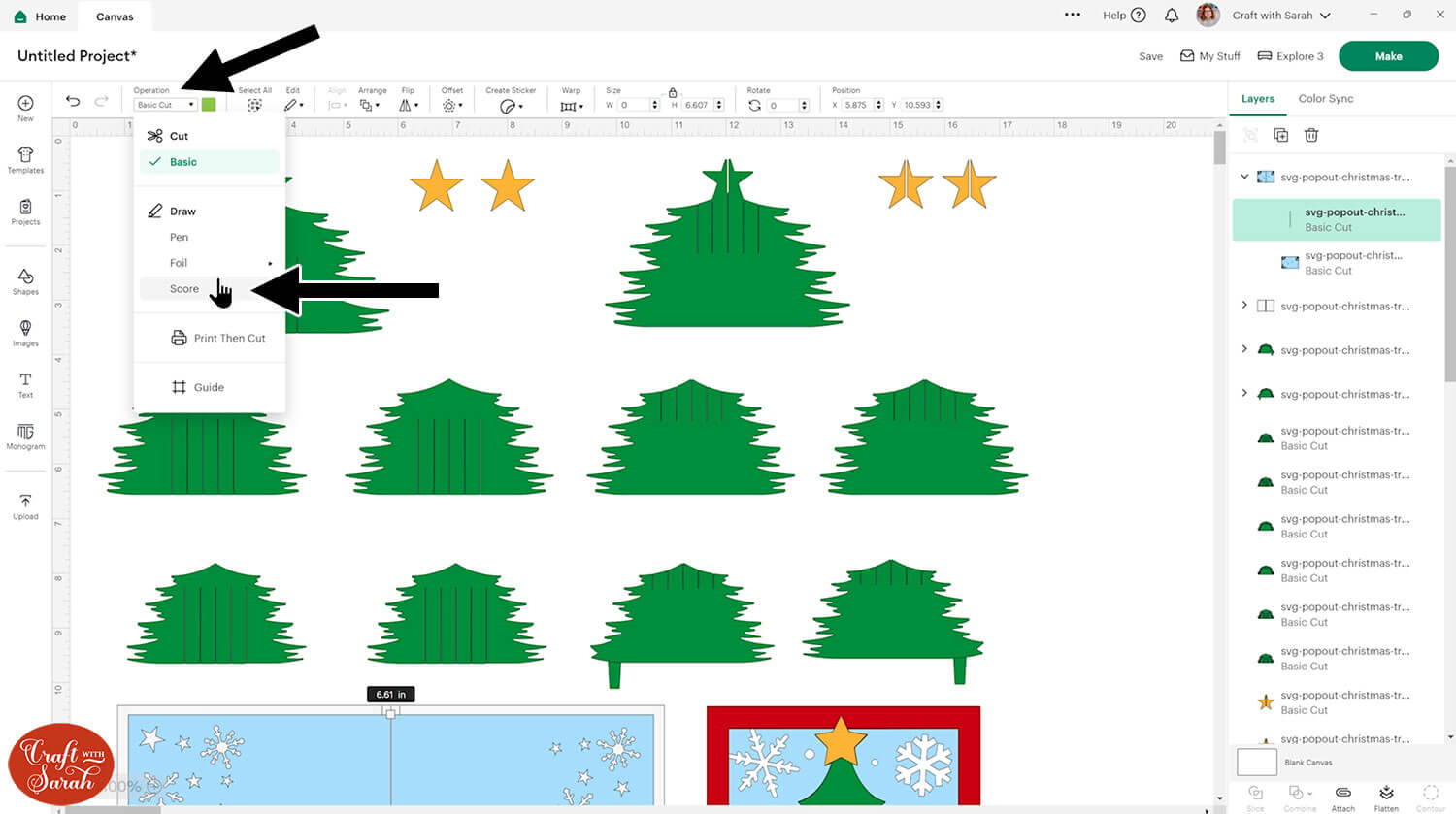

Change the layer to “Score” using the Operations dropdown.

We need to do one more thing to it which is to tell the Cricut we actually want it to do those score lines on that rectangle.

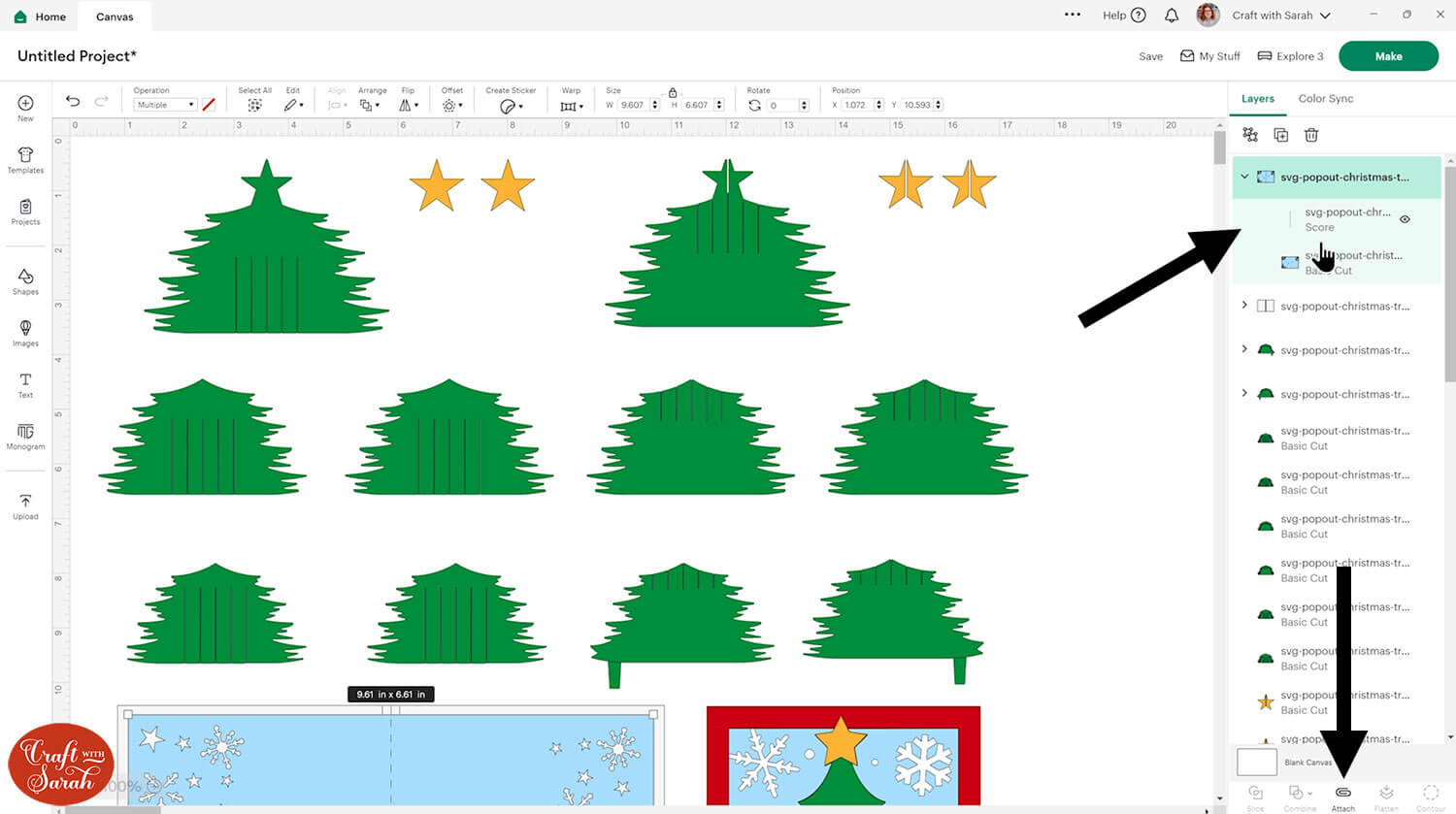

Click to select the whole group that contains the score line and the base card pieces. Down the bottom of the layers panel, press Attach.

Repeat these steps for the other three pieces that have score lines.

When you “Attach” layers together, it moves them to the top of the layers panel. You can use the “Arrange” button to move them back into their original places if you want to, or drag-and-drop them in the layers panel, but that is not essential.

There are three more score lines to change: a vertical line on the main white greetings card base and horizontal lines on two of the tree pieces.

Complete the same steps for the remaining score layers.

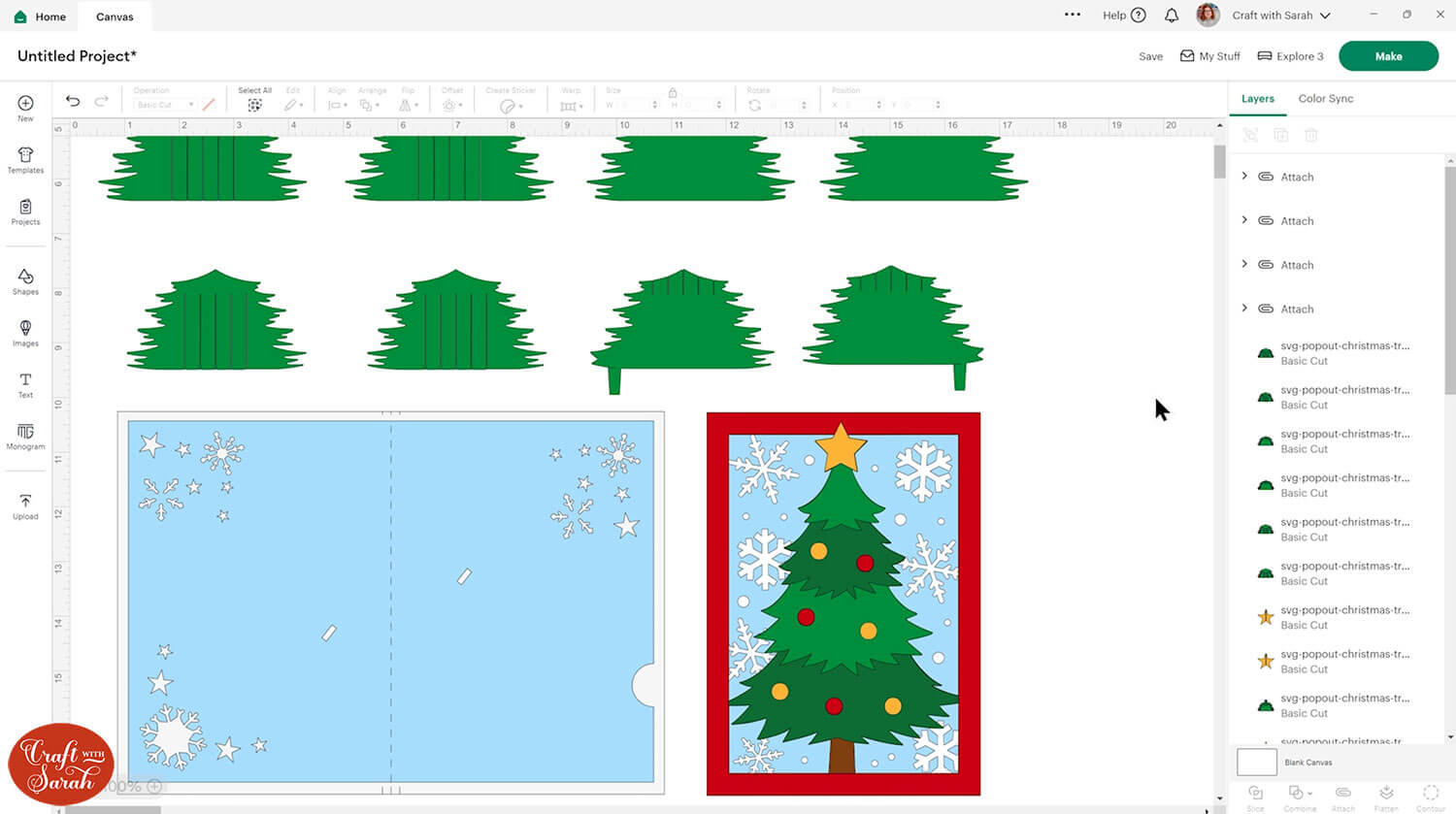

Your layers panel should now look like this:

TIP: If you don’t have a scoring wheel or stylus for your Cricut then click the single-line layers and hit the trash can to delete them instead. It will be a little bit trickier to put together without score lines because you will have to fold it manually in the correct places. Or, check out these alternative ways to score with a Cricut.

Step 3) Cut the project from cardstock

Now is a good time to save your project so that you don’t have to do the formatting all over again.

When you’re happy with how everything is looking, click “Make” and follow the on-screen instructions to get everything cut out from your cardstock.

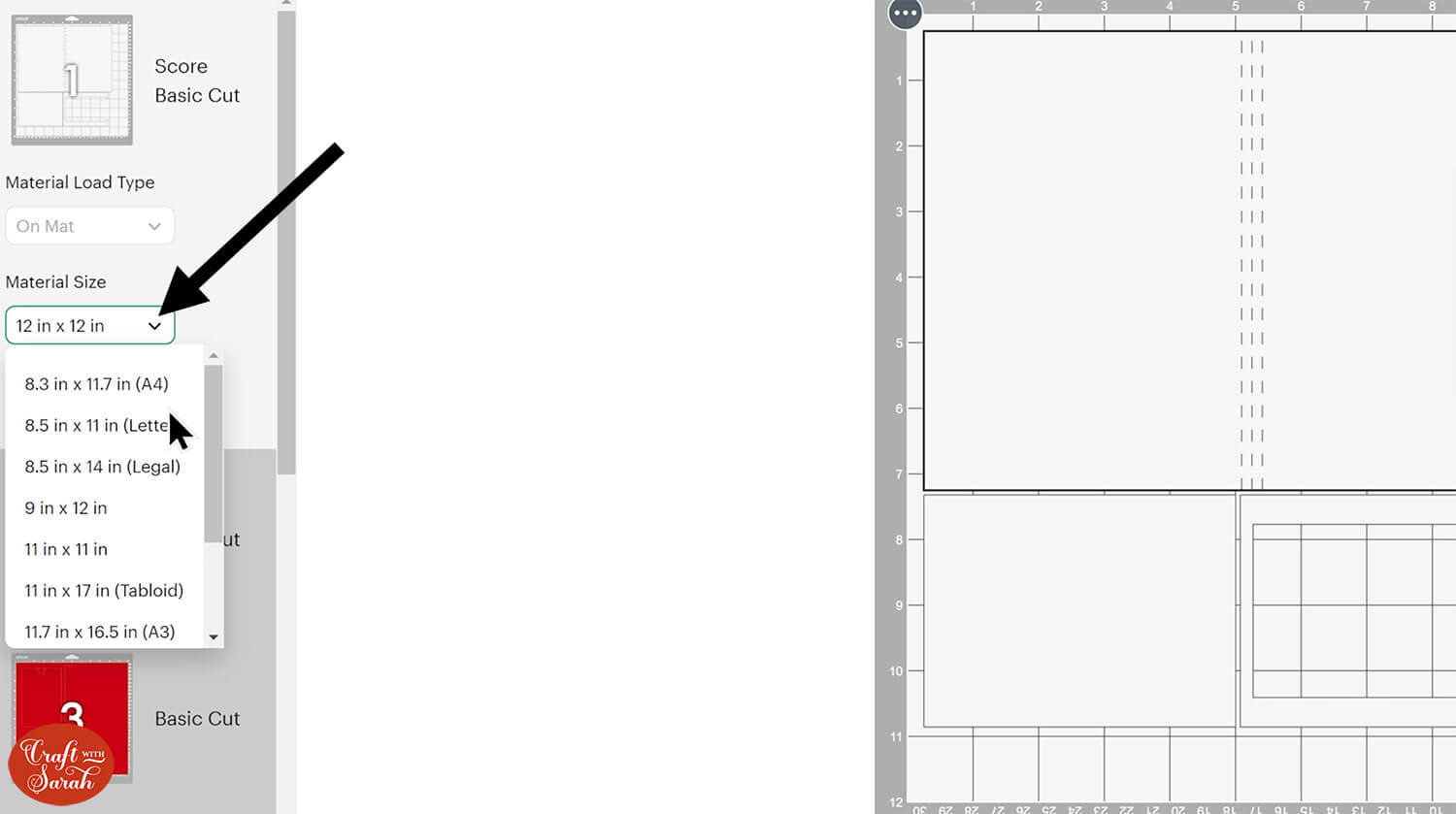

To change the paper size, go into the dropdowns over on the left side of the screen and choose the paper size that you want to use. You need to change it for every single colour.

You can click-and-drag to move things about on the screen to take up less space on your cardstock.

Make sure when you’re moving things about that nothing overlaps, otherwise it won’t cut out properly.

TIP: New to cutting cardstock with a Cricut? Check out this in-depth tutorial which goes through every step of the process, including tips for getting the best quality cuts from your Cricut.

Step 4) Stick the card front together

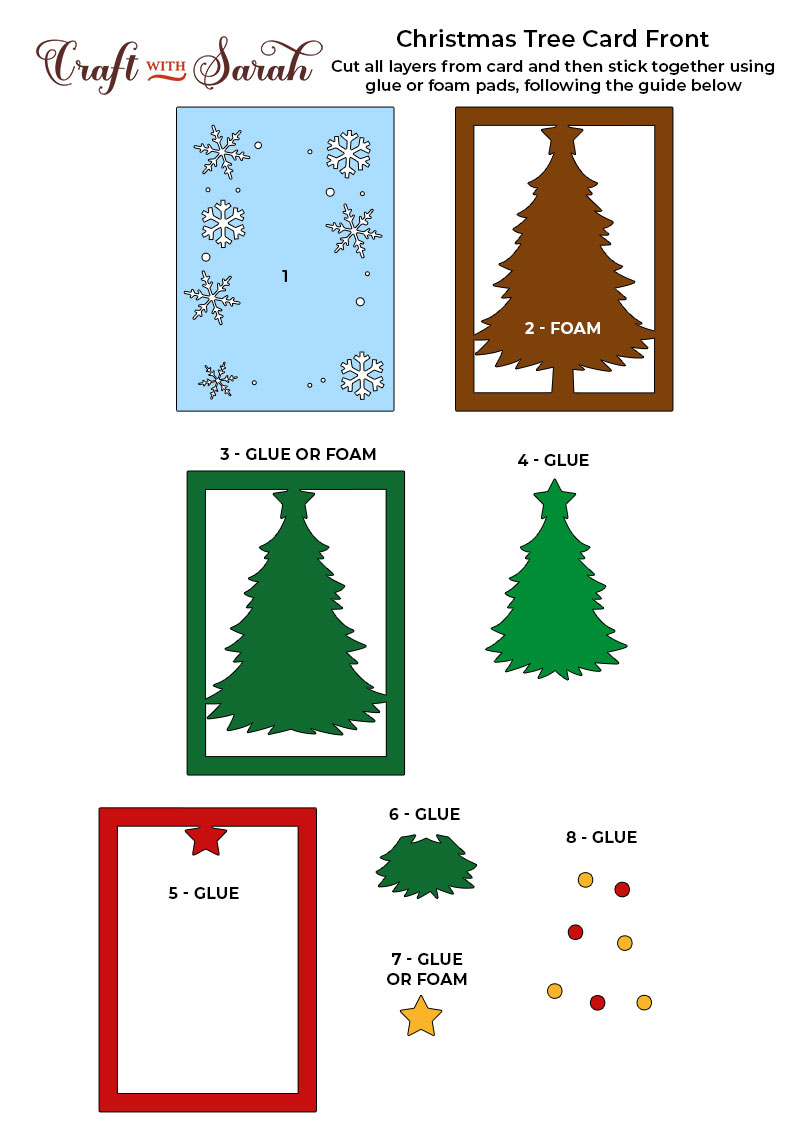

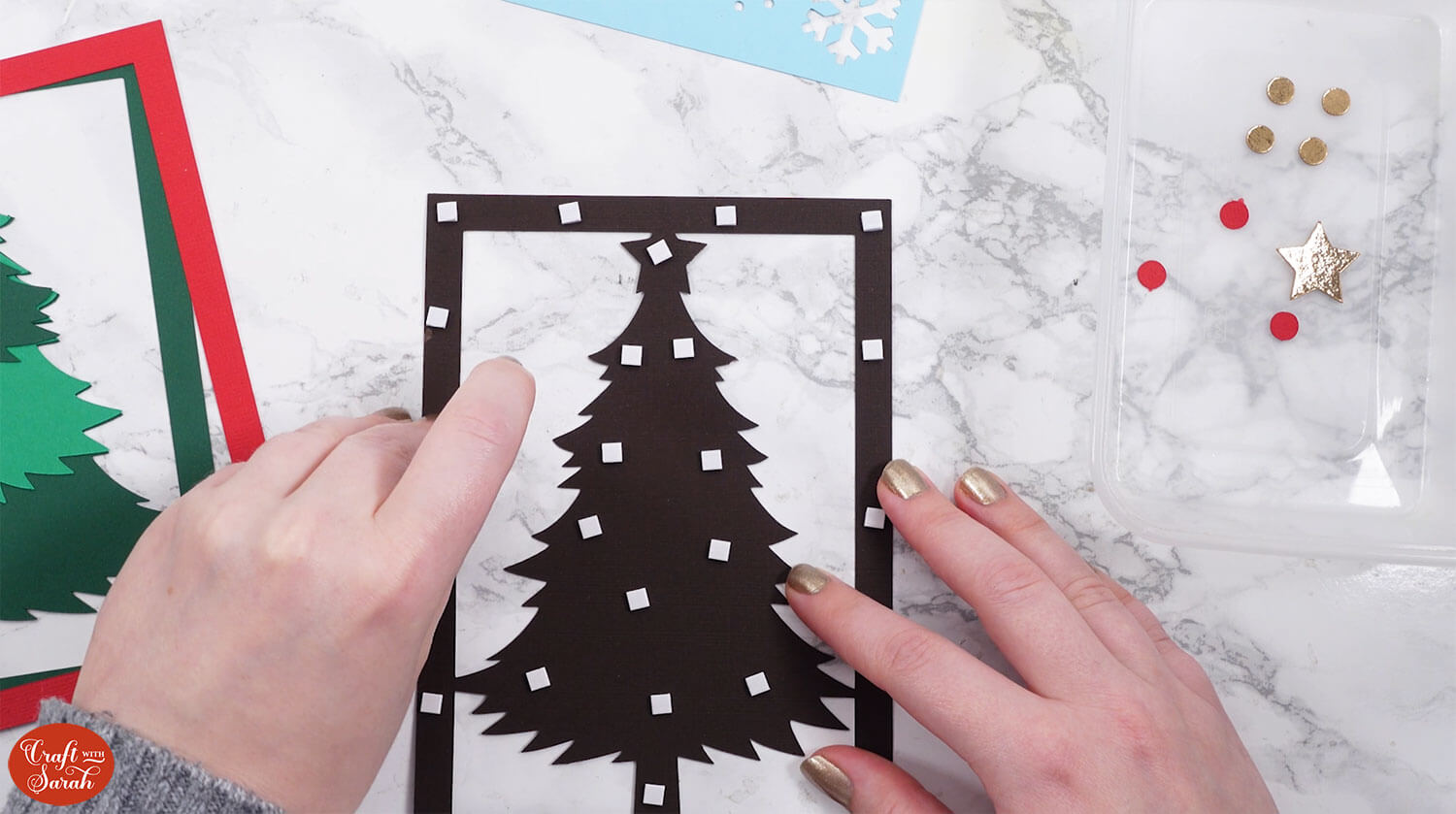

Stick together the pieces that make up the front of the card with a mixture of foam squares and glue, as shown on the assembly guide below.

When you’re adding foam squares to the larger pieces of card, make sure you put some in the middle of the card as well as around the edge. If you don’t put any in the middle, there is nothing to hold the card flat so it might bow downwards without them.

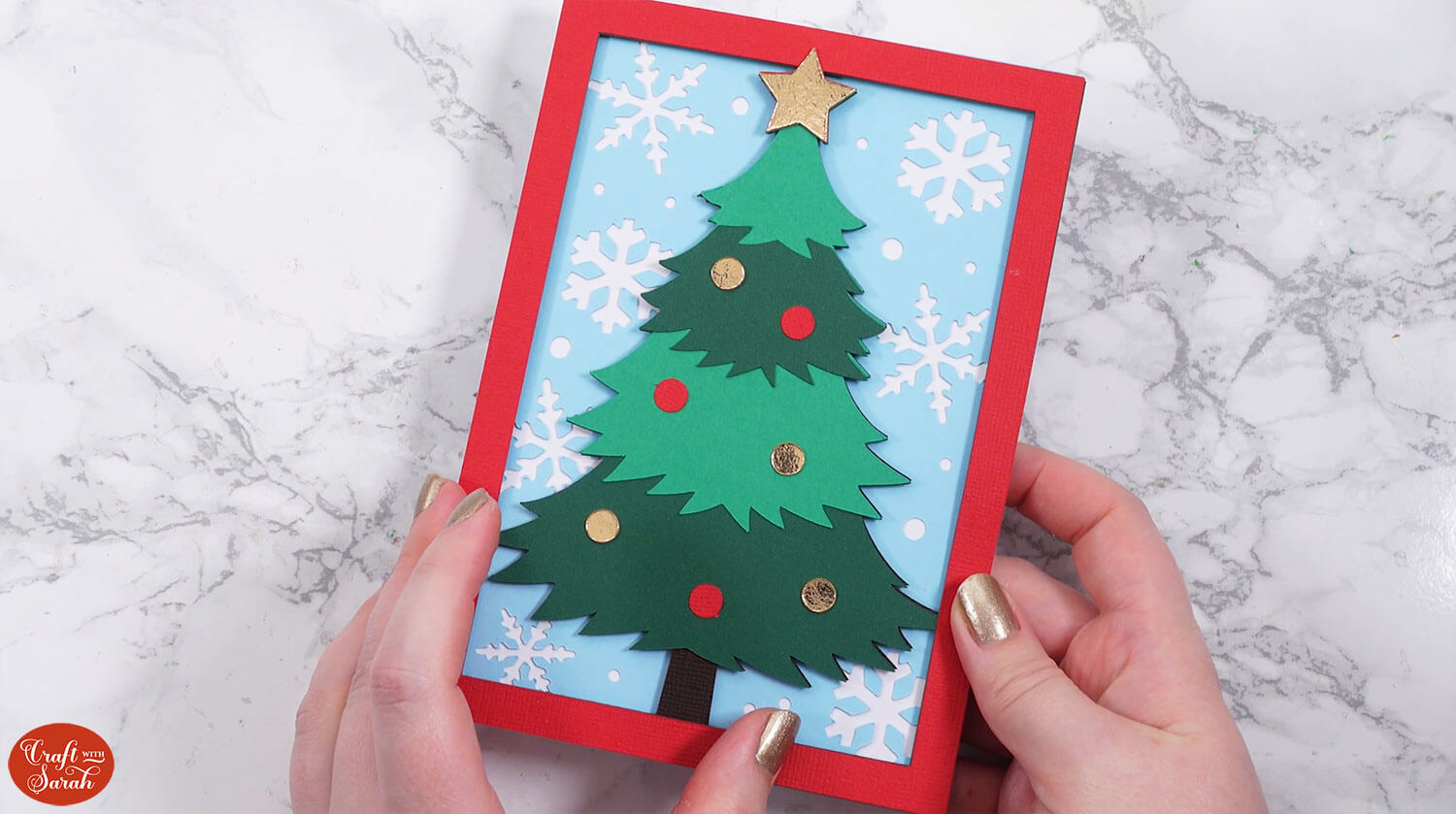

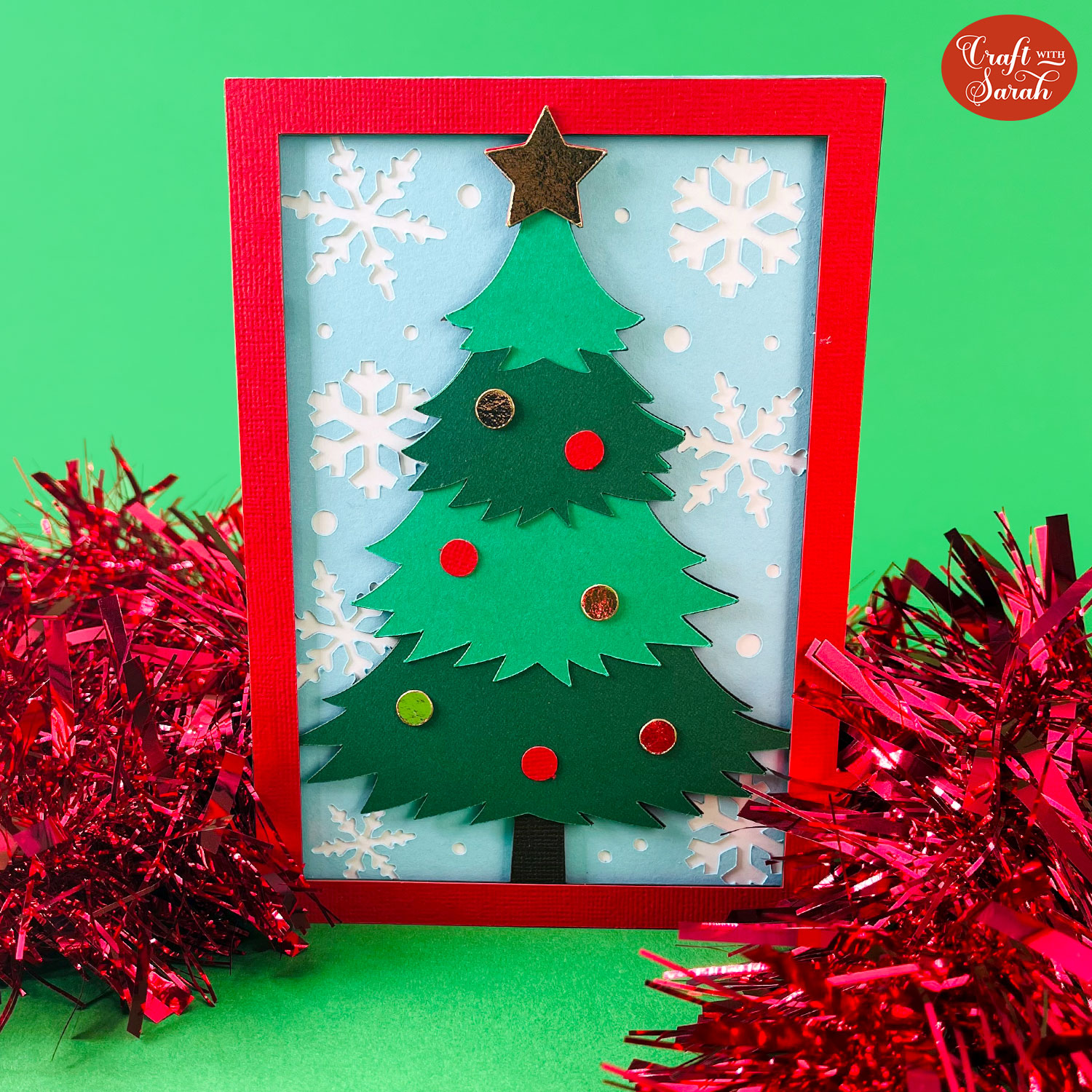

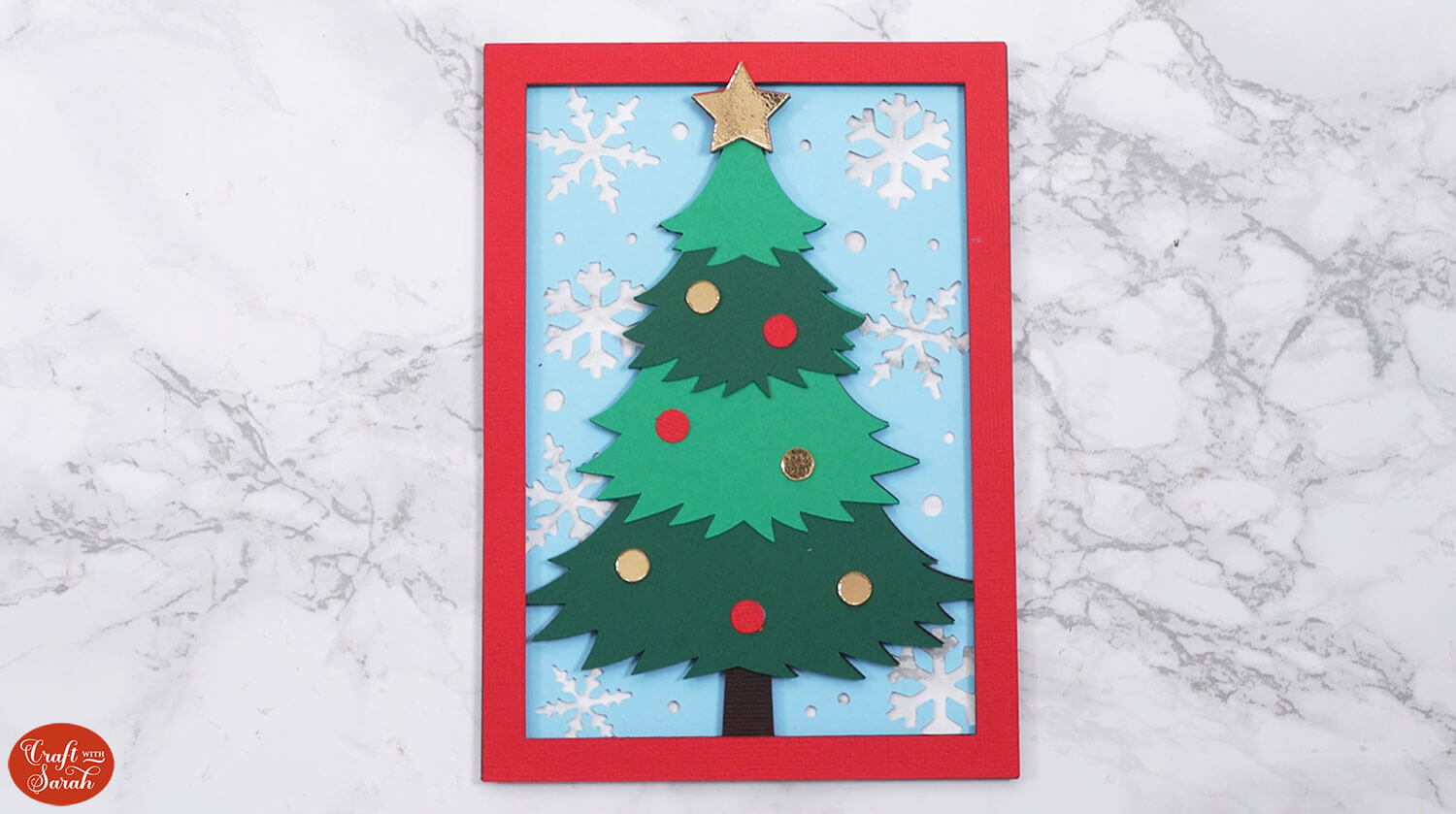

Here’s how it looks when finished:

Step 5) Assemble the popout mechanism

Next we will put the popout mechanism together.

Although it looks complicated with the Christmas tree shapes, it’s a simple “grid” which will be made by slotting the green pieces together.

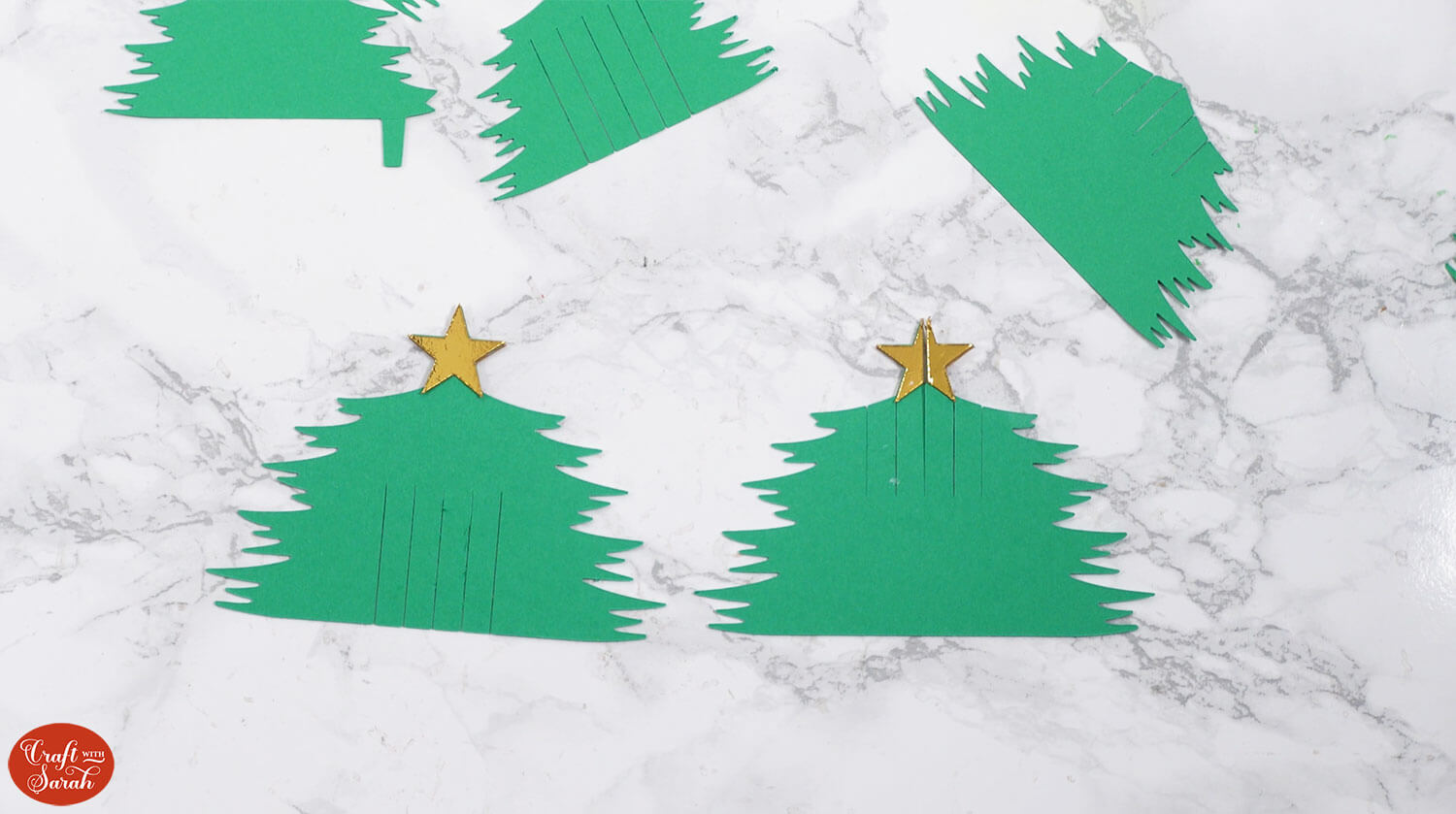

First, glue the star shapes to the relevant pieces. They are double-sided, so that the star can be seen from all sides of the popout card.

Put the tree pieces into size order. There are two copies of each sized piece.

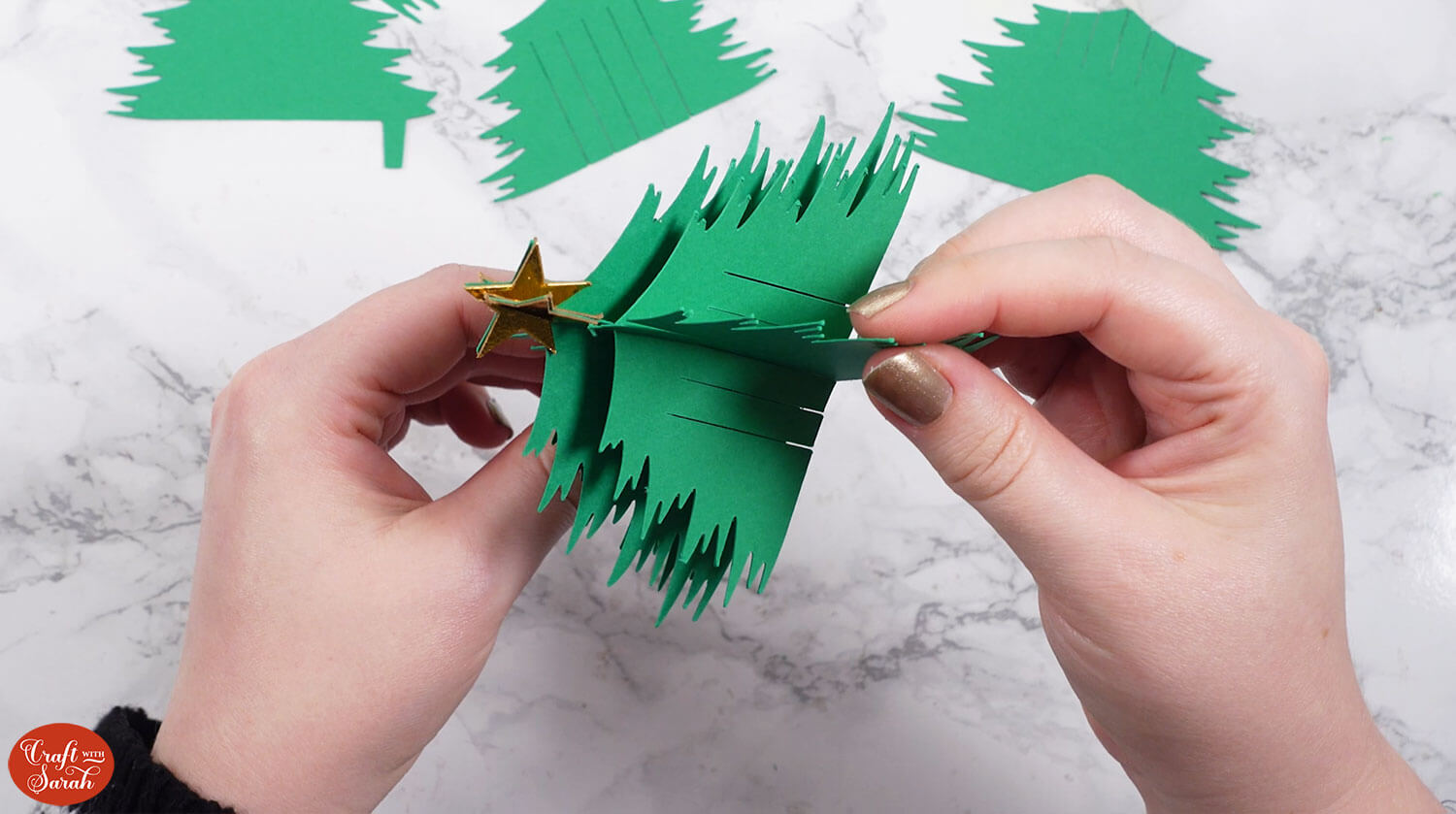

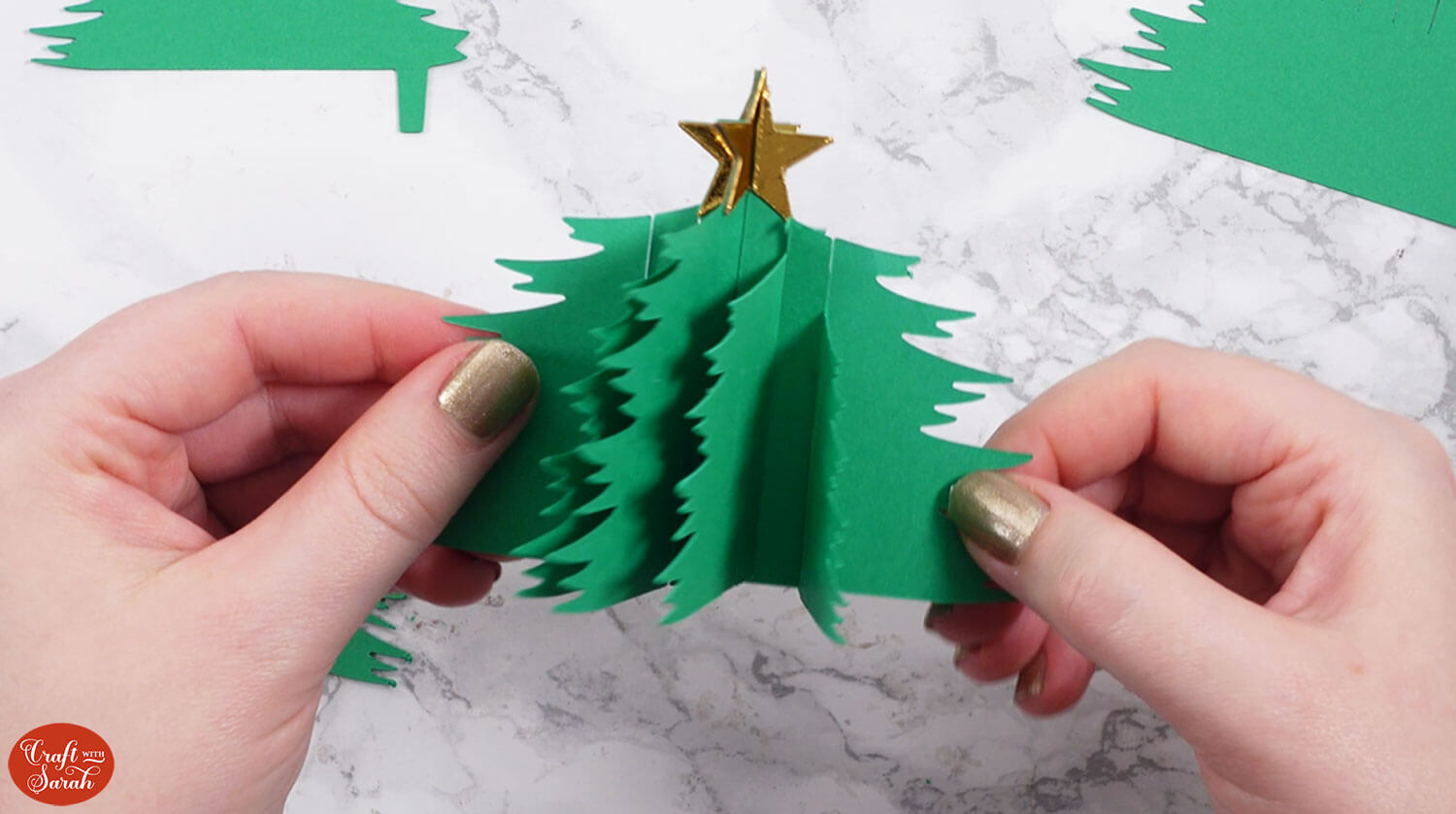

Take the two pieces of the tree with the stars on top and slot them into each other.

Take the two trees in the next size down that have the slits in the BOTTOM of the pieces, and slot one in on the left of the piece you just added, and the second on the other side.

Select the next sized trees and slot one in each side of the existing tree shapes.

Now we are going to add stability by placing the remaining tree shapes in the opposite direction to what we have already put together.

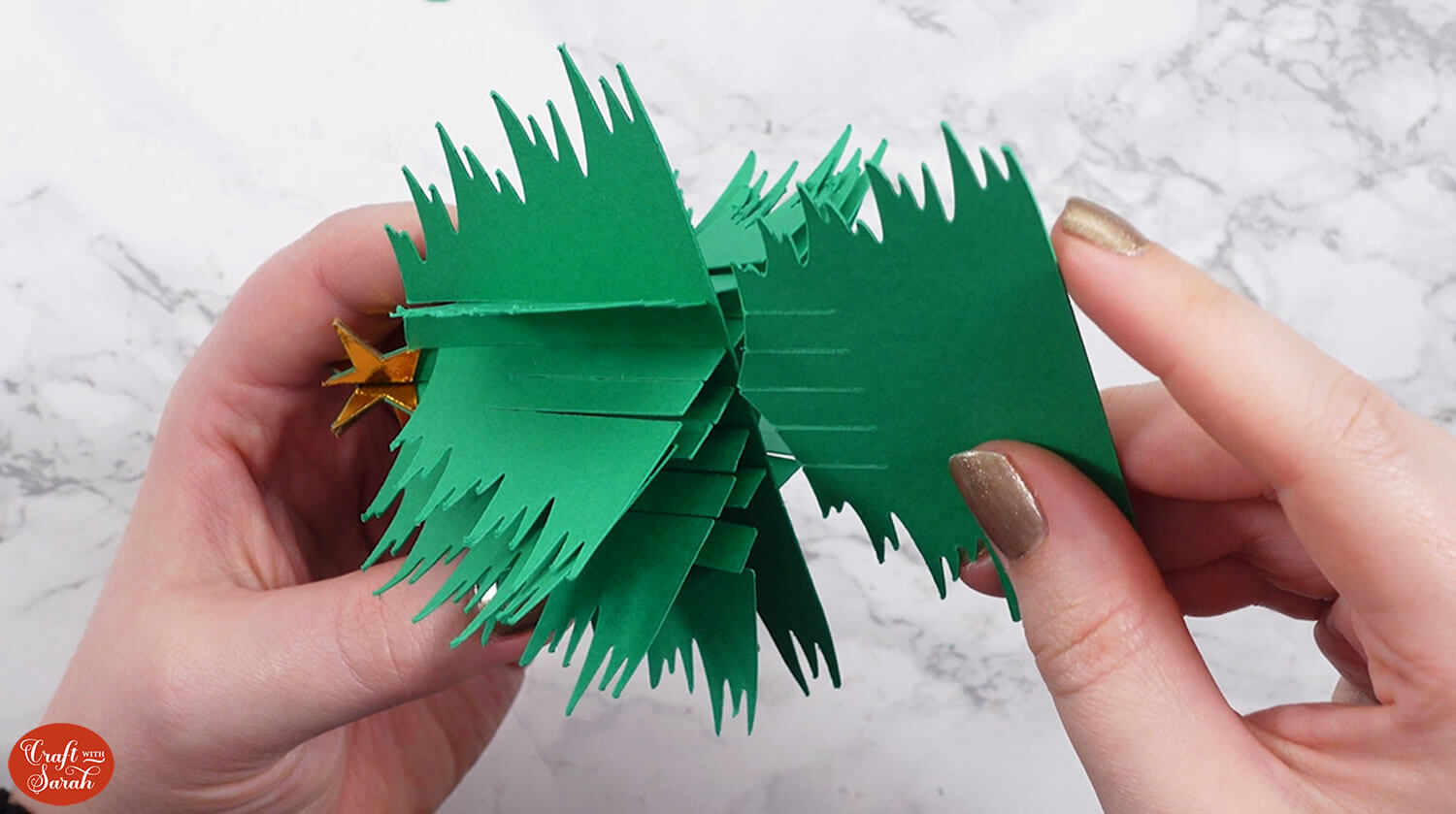

Take the two trees that do NOT have the rectangular tabs on the bottom and thread one on each side of the popout tree.

They slot in from the bottom. It’s a bit fiddly, but I found this the easiest way to slot the pieces together.

At this point, we need to check which way around the tree will fit inside the greetings card.

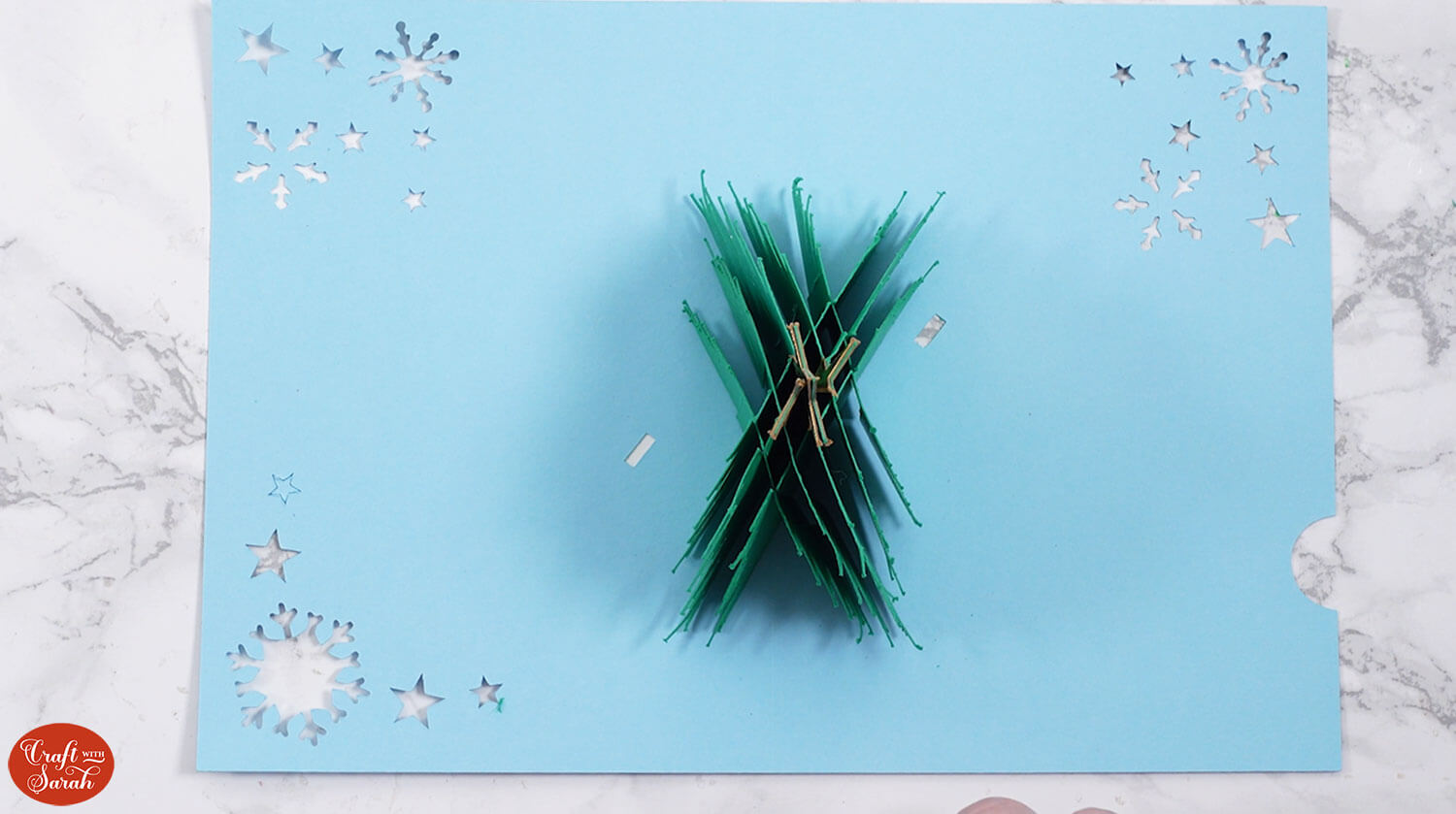

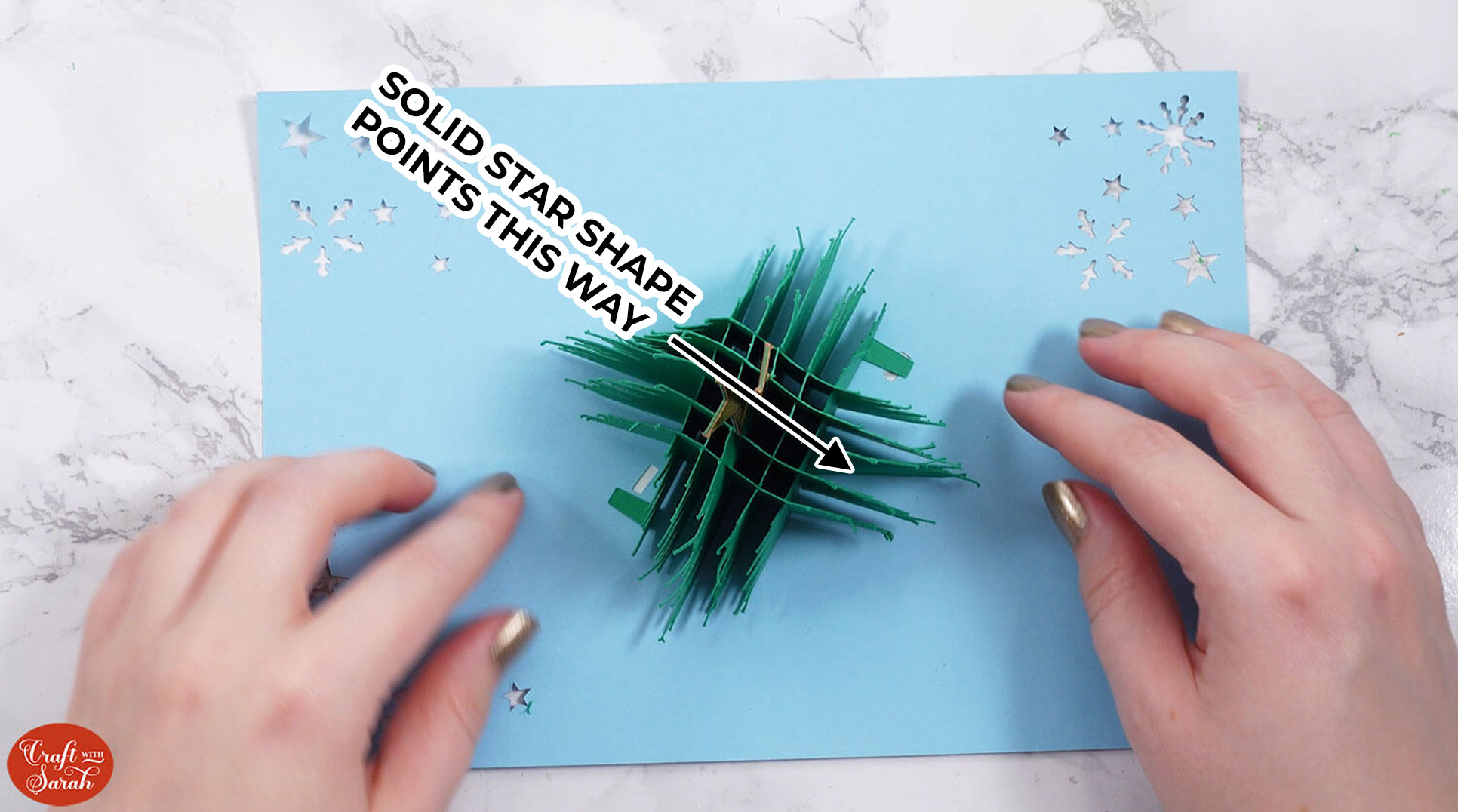

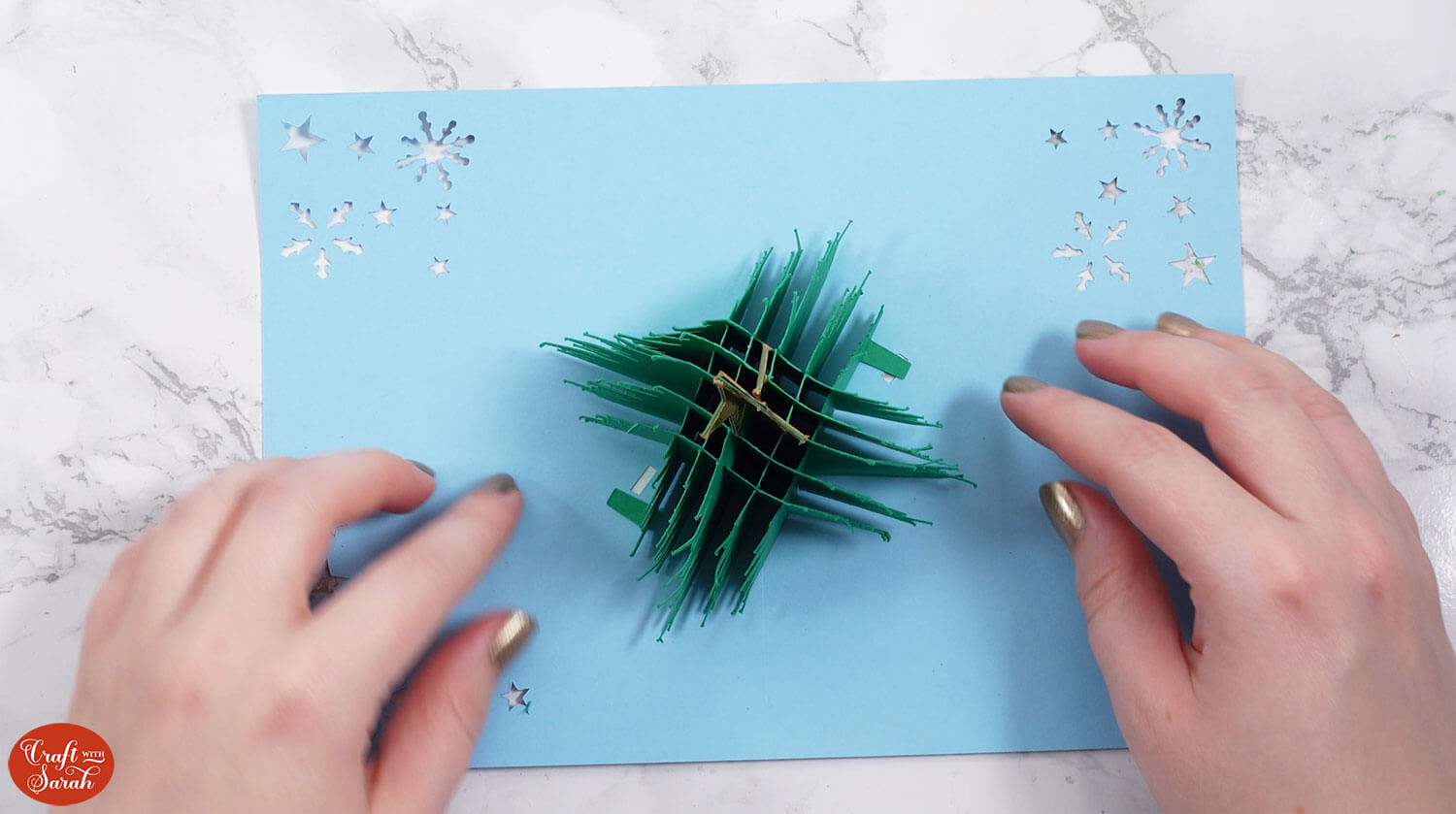

Place the tree inside the blue card shape so that it is positioned as per the image below.

It should look “taller” than it is “wider”.

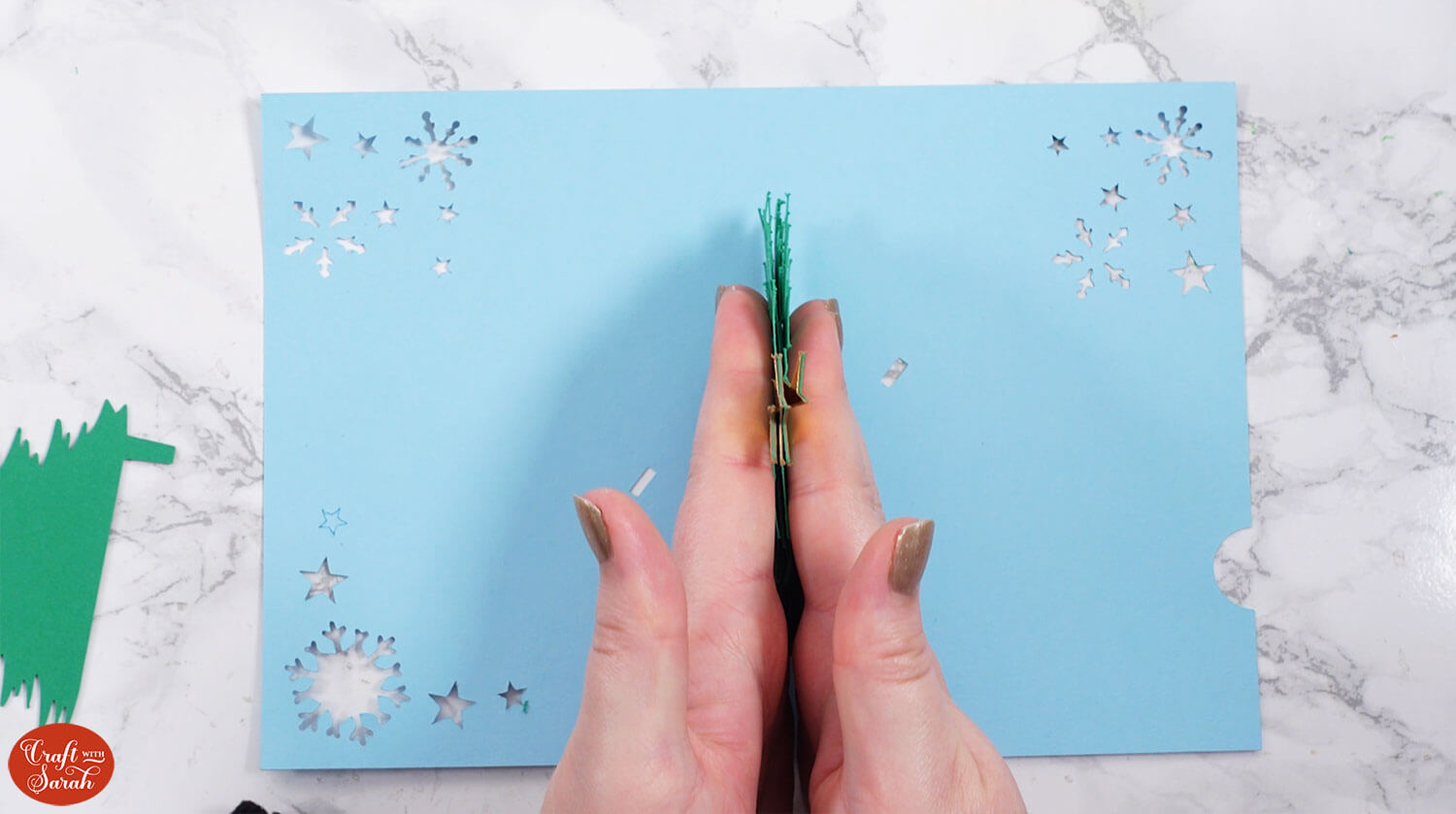

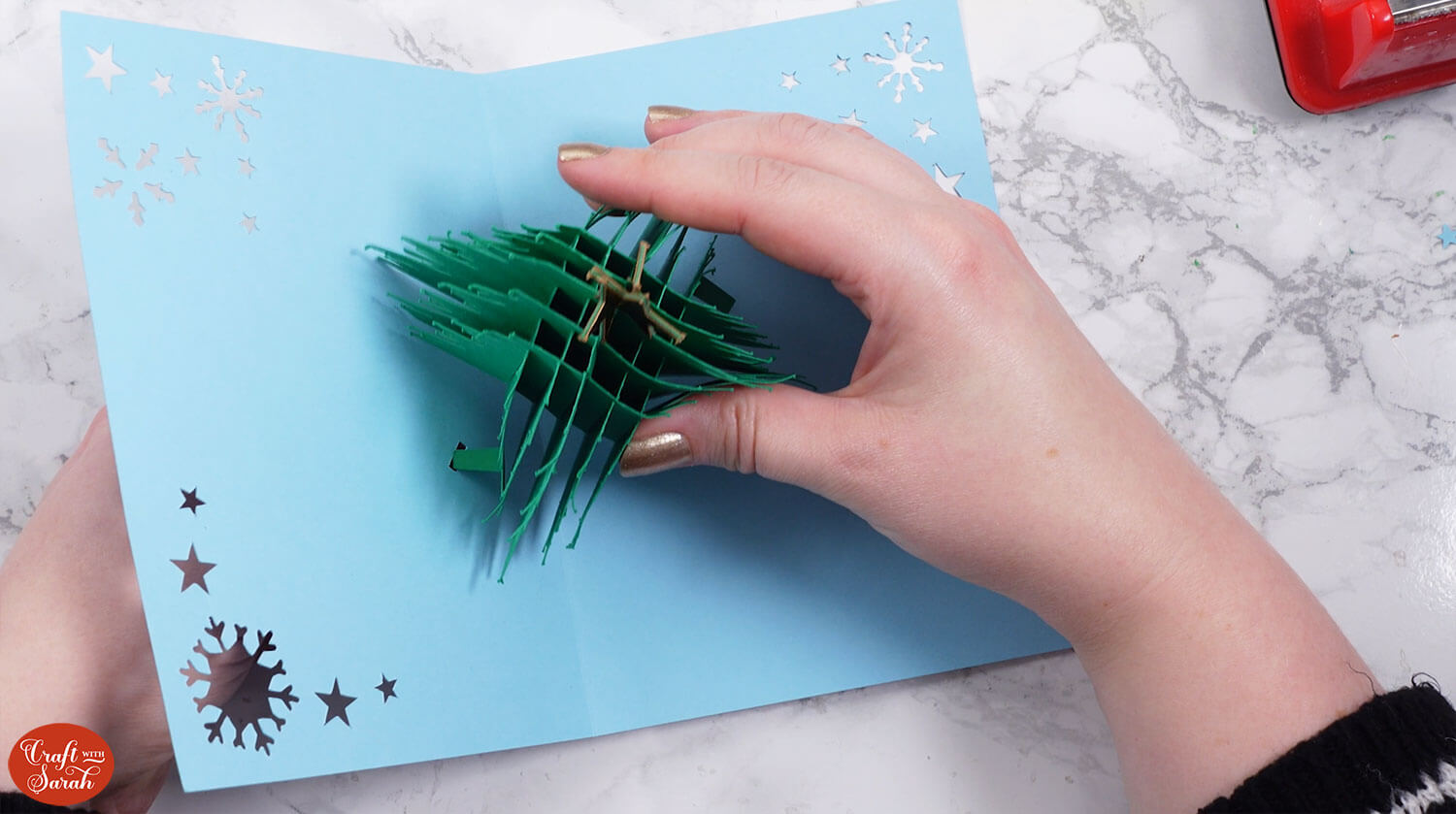

Simulate the card closing by gently pushing your hands together around the popup from the left and right.

It should close together like this:

If it DOESN’T, that means your tree is the wrong way around, so move it.

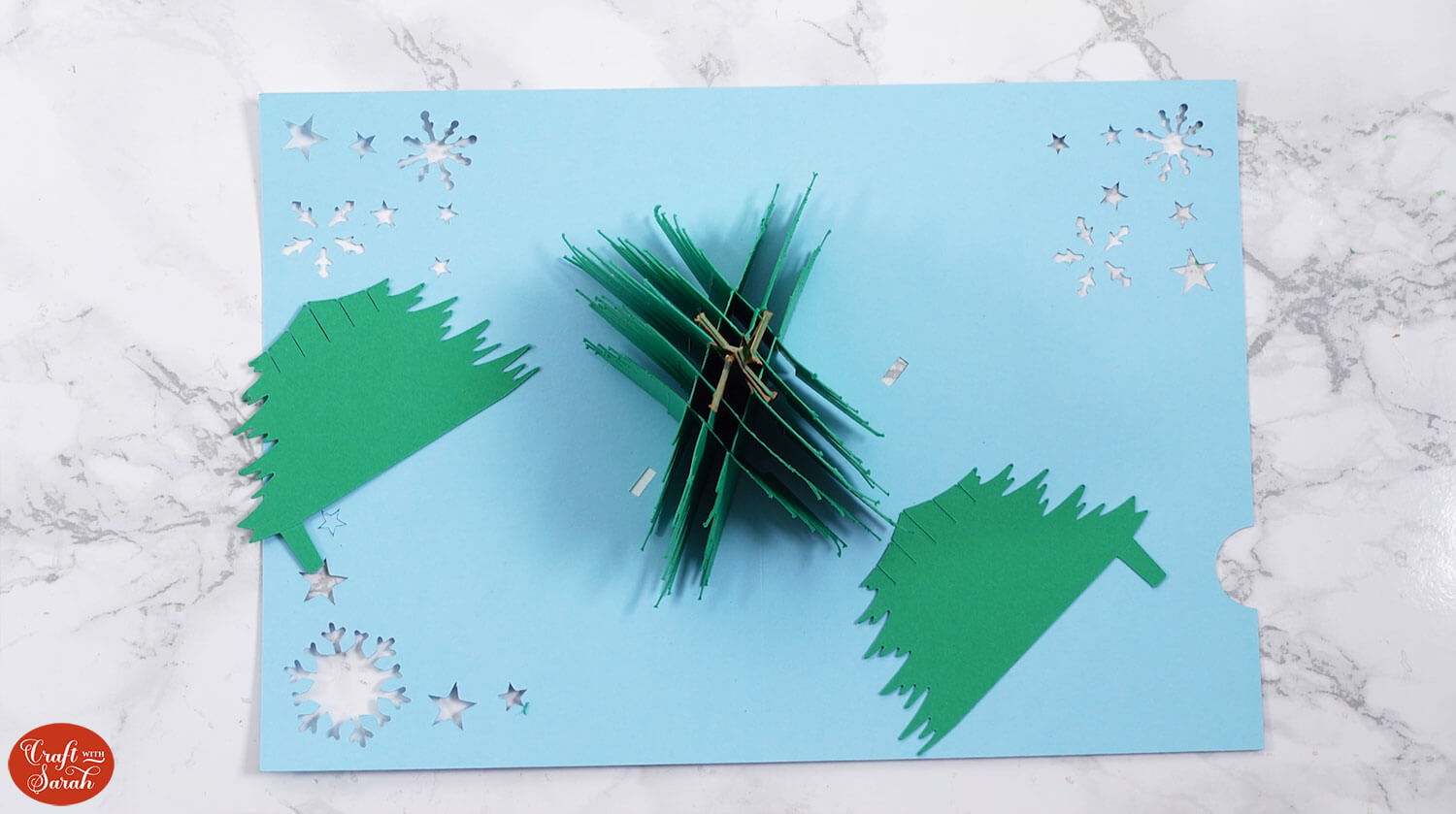

Use the position of the tree to work out the direction to place the two pieces with the tabs on.

The tabs will end up going through the rectangle holes in the blue card, so it’s important to get them the correct way around otherwise they will not fit.

Slide the two tab pieces into the tree.

Step 6) Attach the pieces together

Take the blue card and fold it down the middle. Place it on your work surface so that the cut out for the hidden message panel is on the right.

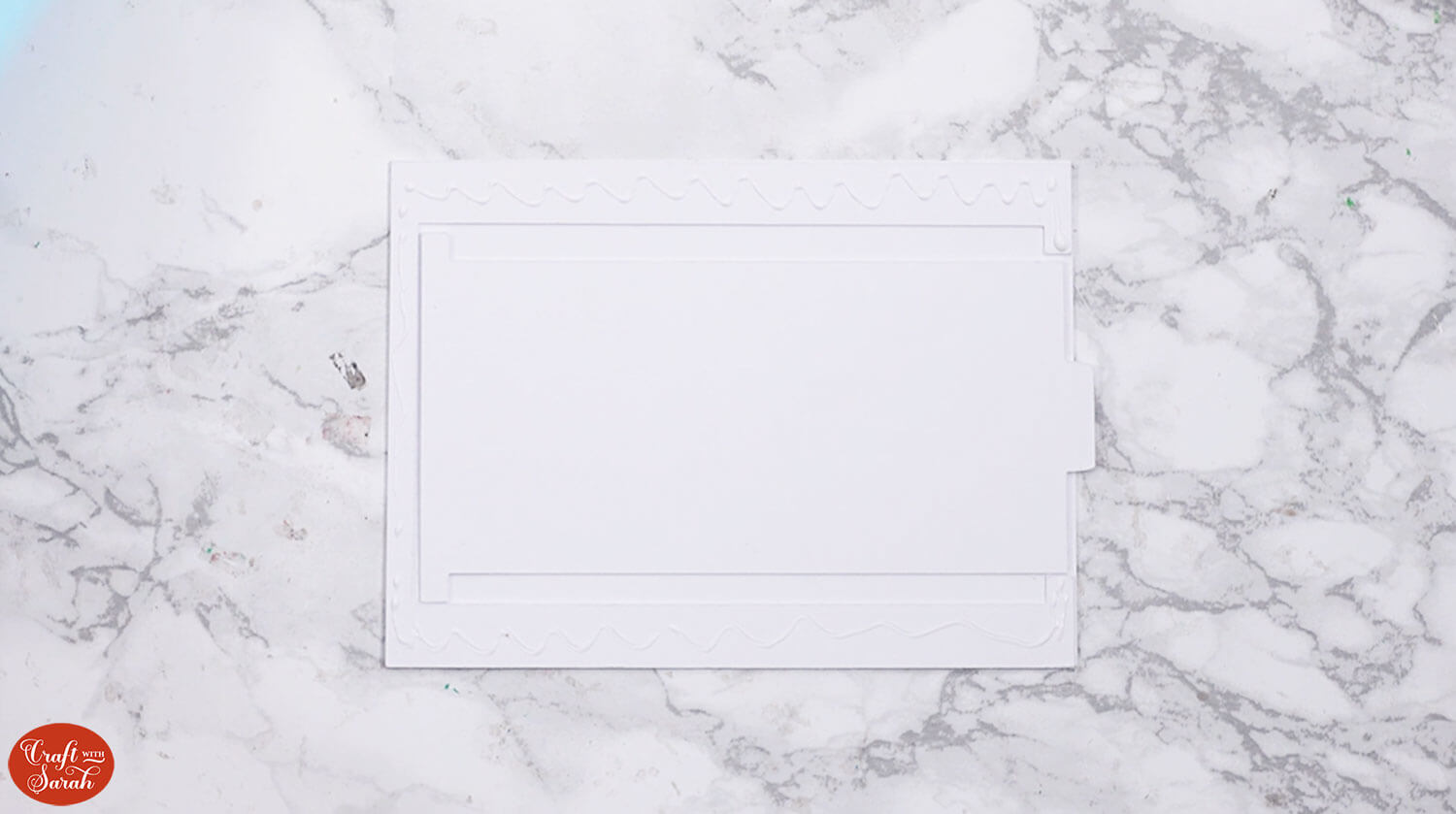

Gather the three white hidden message panel pieces.

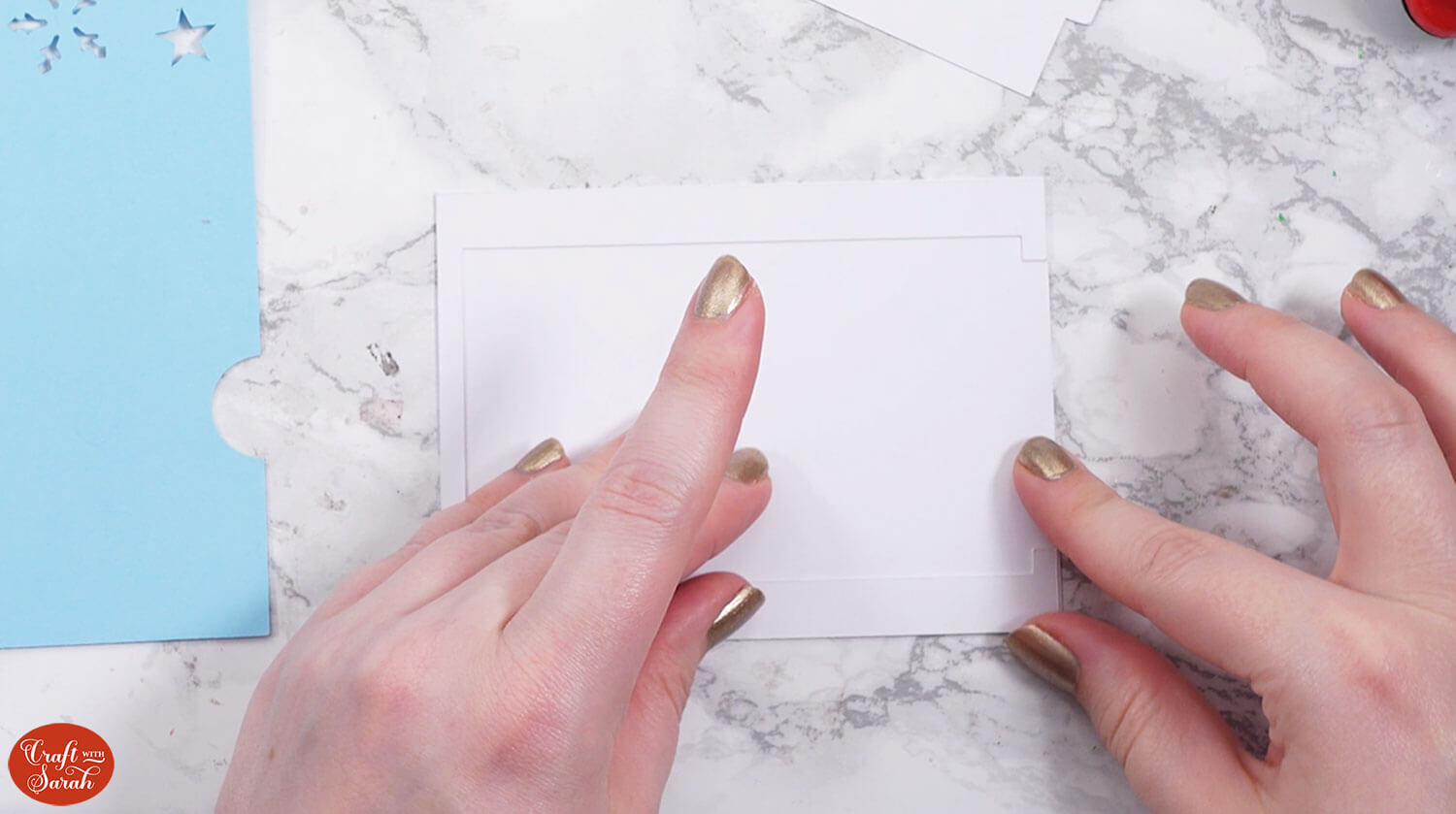

Take the plain rectangular piece and add glue to the back of the edge piece.

Line it up and stick it down onto the rectangle. This will keep the hidden message panel secure.

Next, select the message panel and place the pull out section inside. Glue around the edge piece but do not glue the message tab itself.

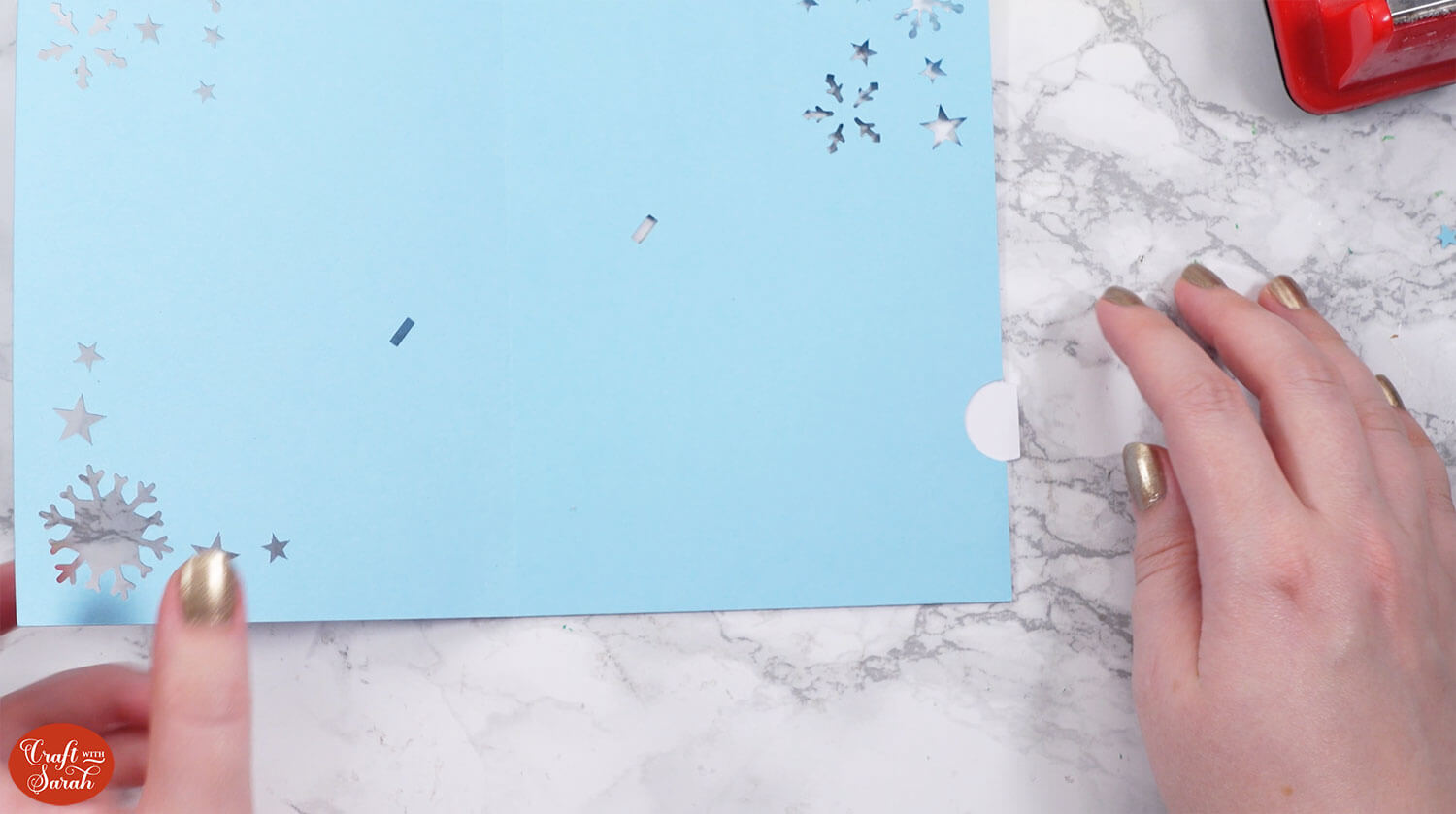

Stick it to the back of the blue card section so that the pull-out tab on the white piece fits in the oval cutout on the right side of the card.

Allow it to dry and then check that the message panel pulls out.

Now we will add the Christmas tree into the card.

You will see two rectangular cutouts on the blue card which are where the tabs on the popout mechanism will go through.

Place the tree inside so that the left side has the tab on the bottom left of the card.

Thread the tab through the hole.

It is important to get these the right way around so that the popout mechanism works.

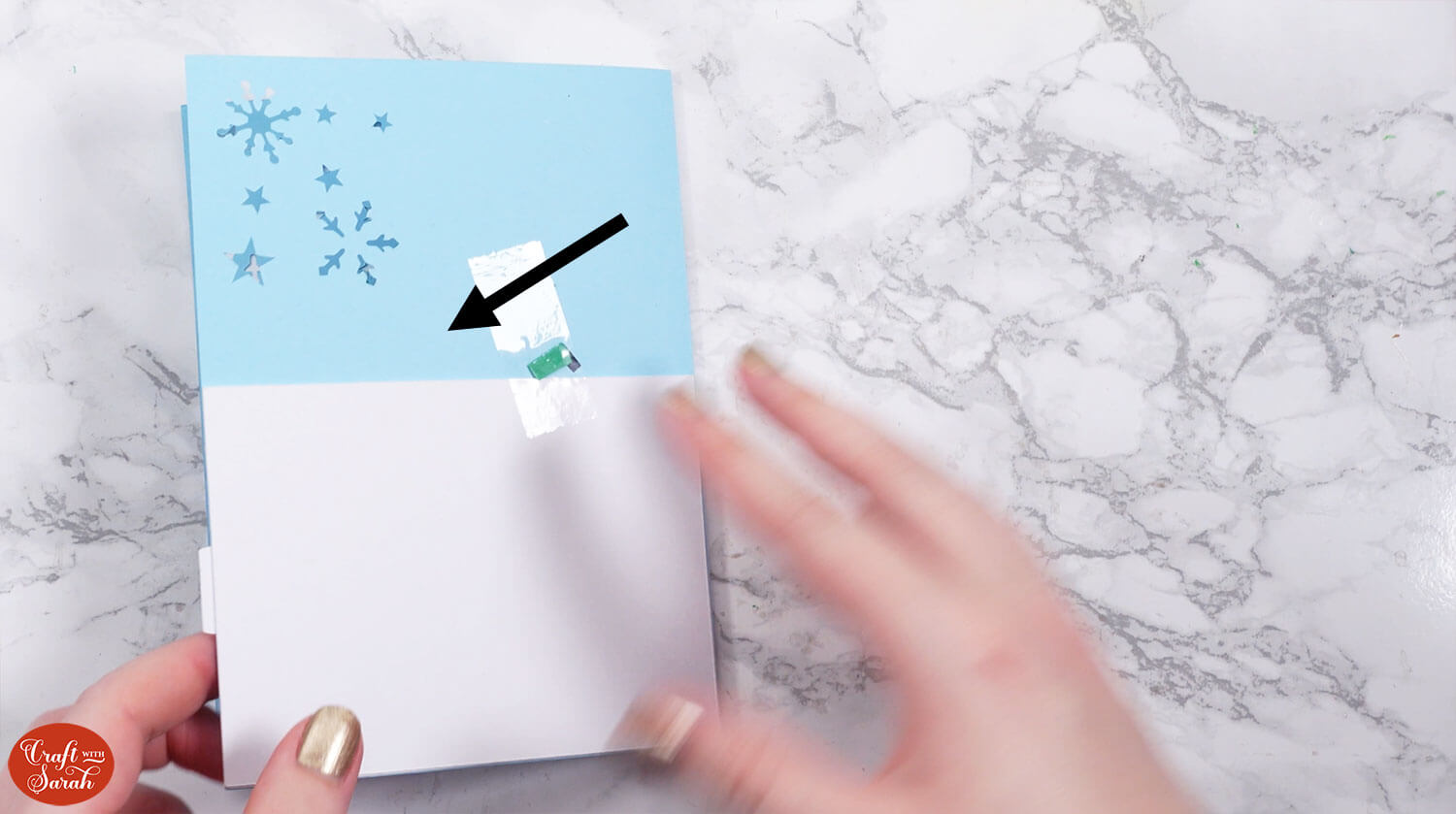

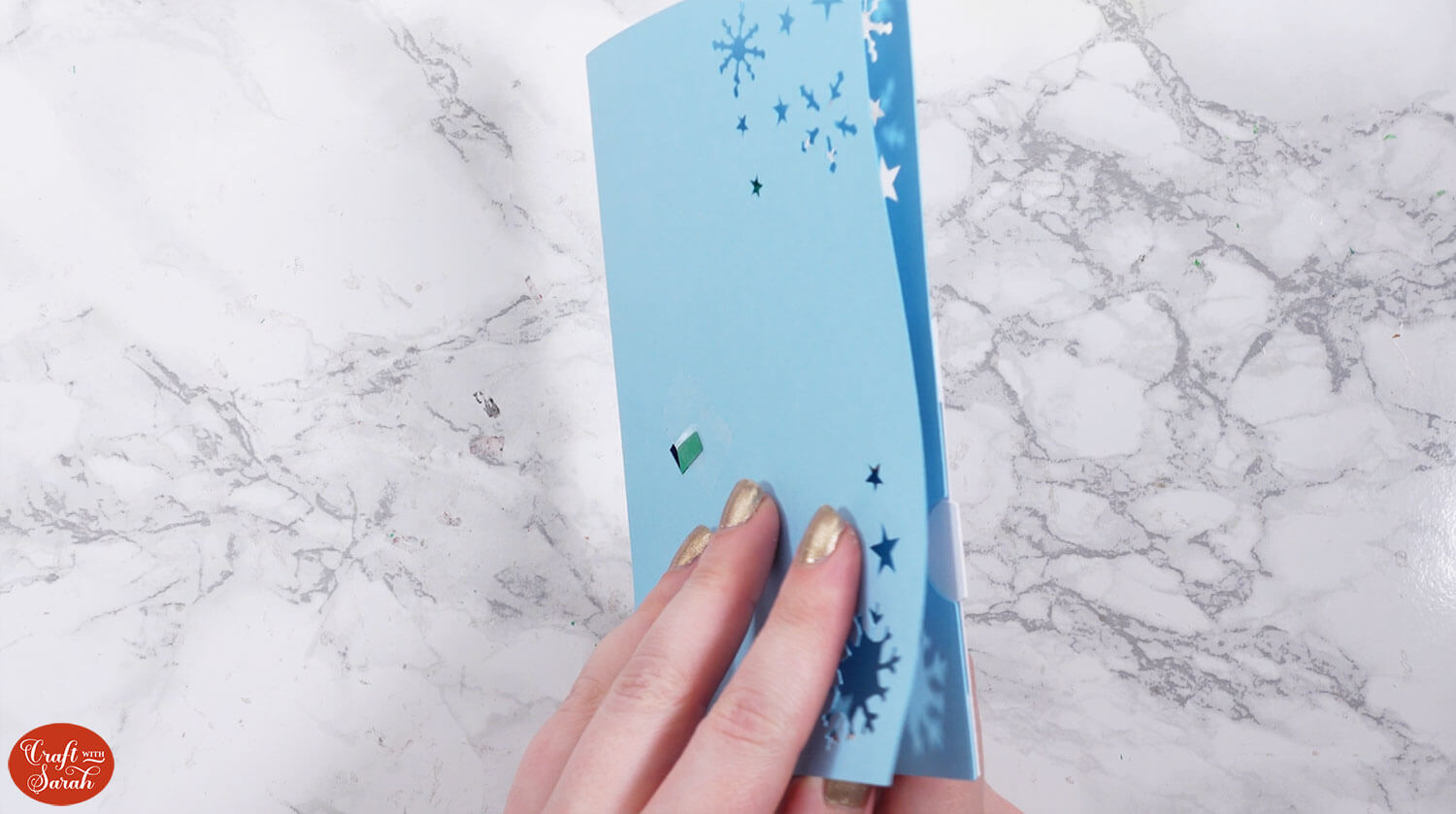

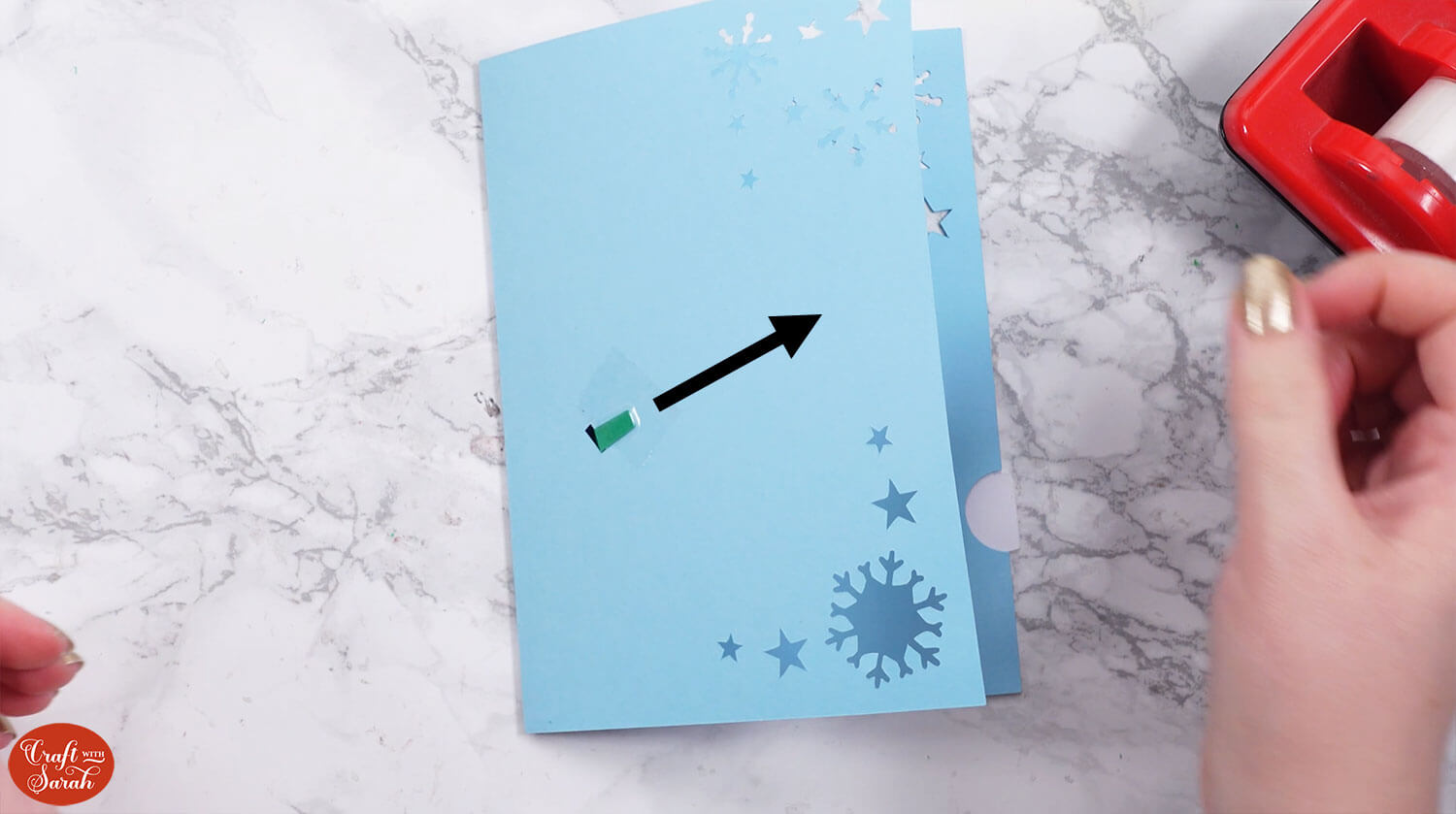

Secure the tab on the other side using tape. The tab should be pointing in a top-right direction.

Do the same for the back tab and secure it using sticky tape. Make sure this tab is pointing in a bottom-left direction.

Now your popout should be secure! Make sure the card can open and close freely.

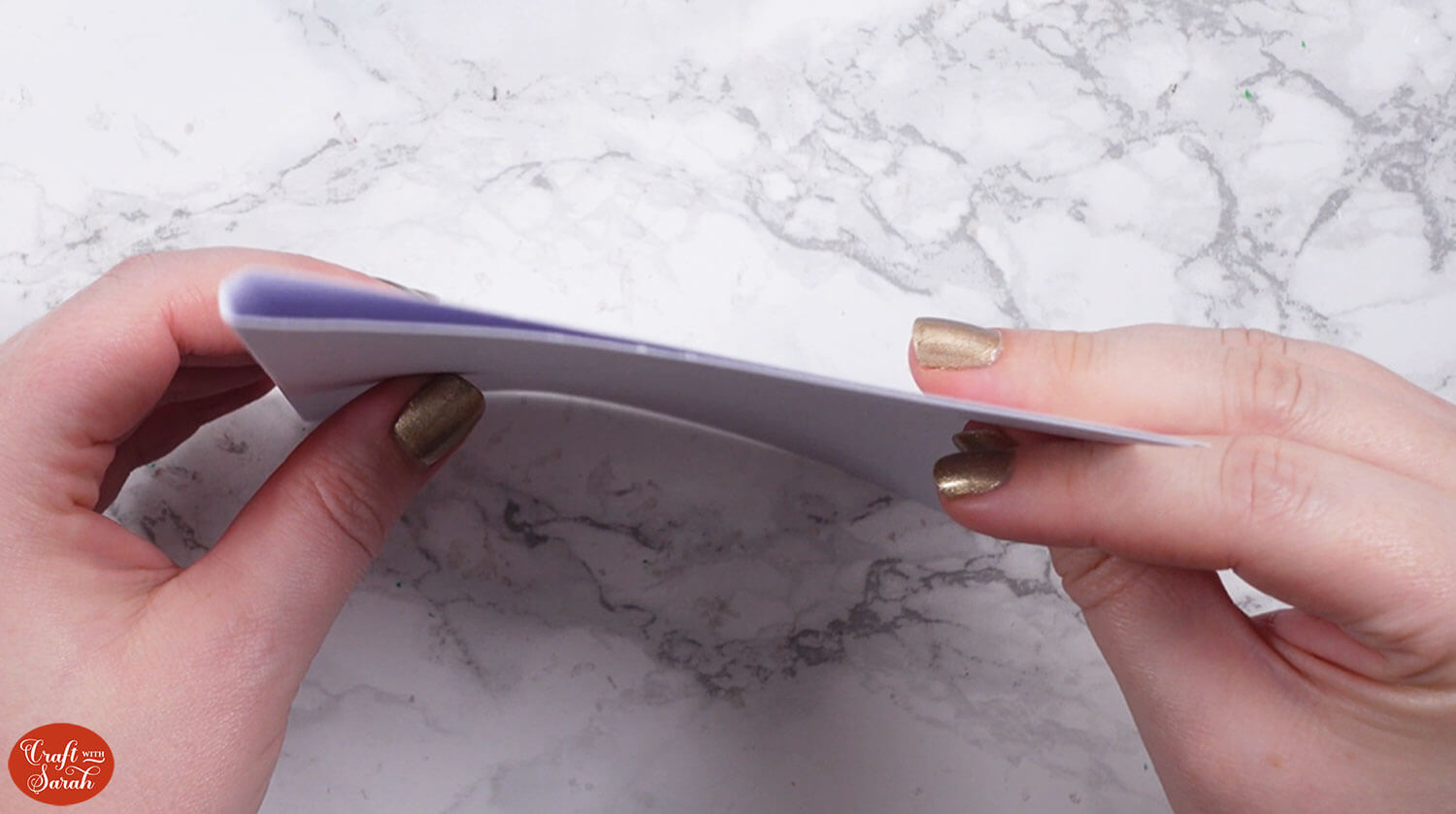

Take the white outer card piece which has three score lines in the middle. Fold the middle scoreline and then the other two so that it looks like this.

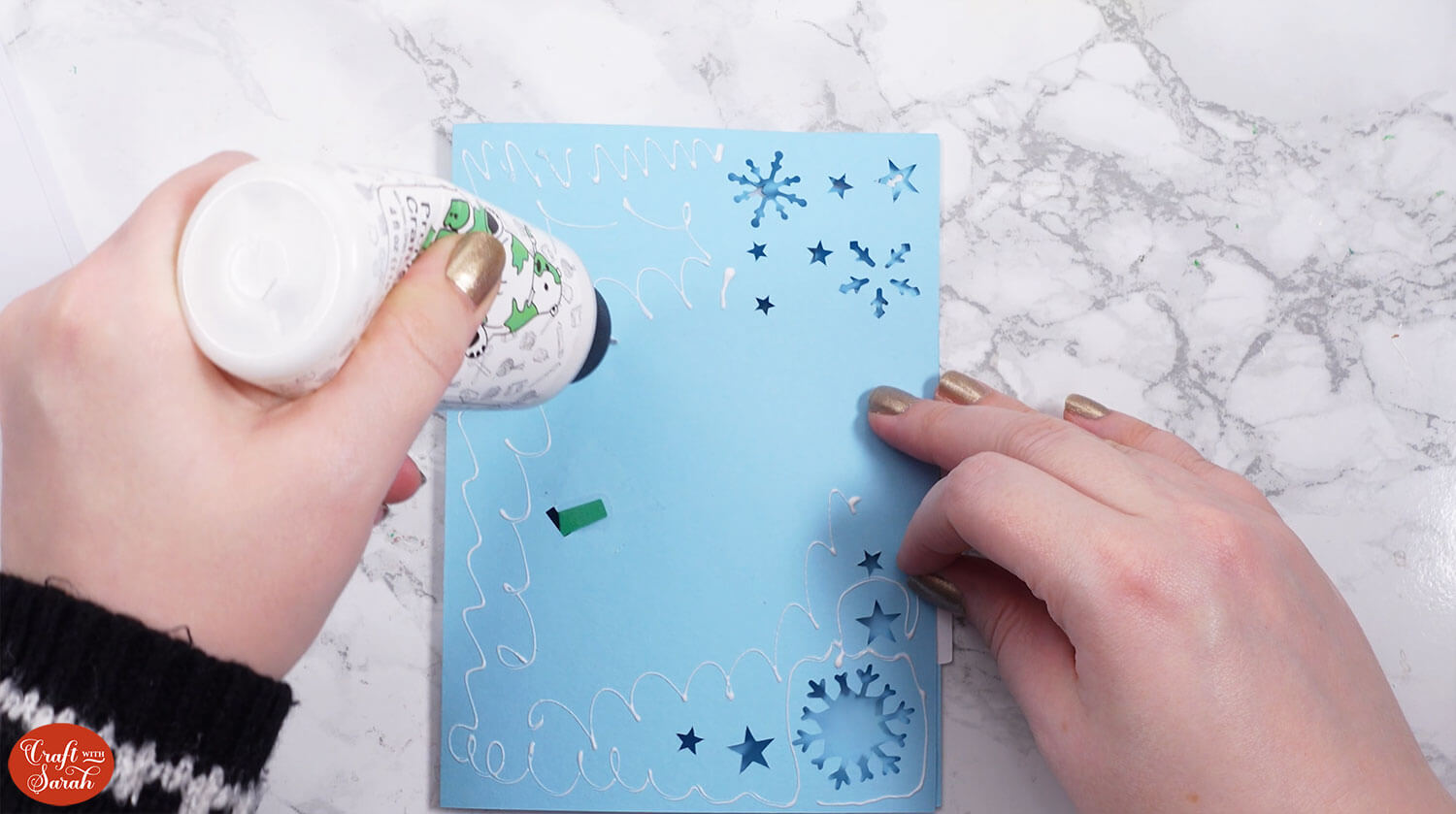

Add glue to the back of the popout card, but only on one side.

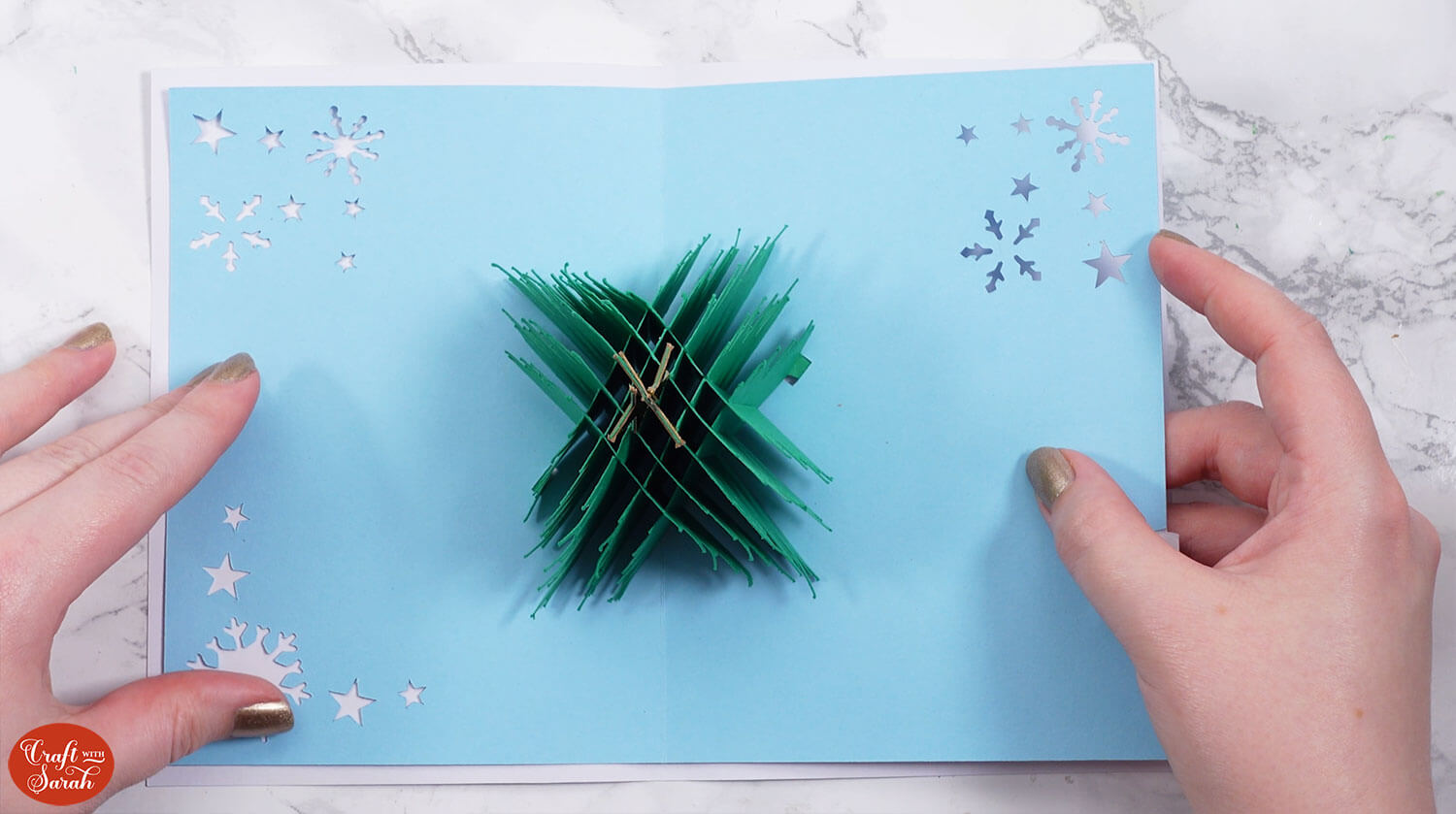

Place it inside the white card and line it up along the score lines.

Make sure it is central.

Close the card up and press it together so that the glue sticks.

Open the card up and add glue to the other side.

Close the card and press it all over to get the glue to stick, then open it up again before the glue dries so you can check the inside.

You should have an even amount of the white colour showing all the way around the edge.

Add a generous amount of glue to the back of the 5×7 inch card front and stick it to the front of your card.

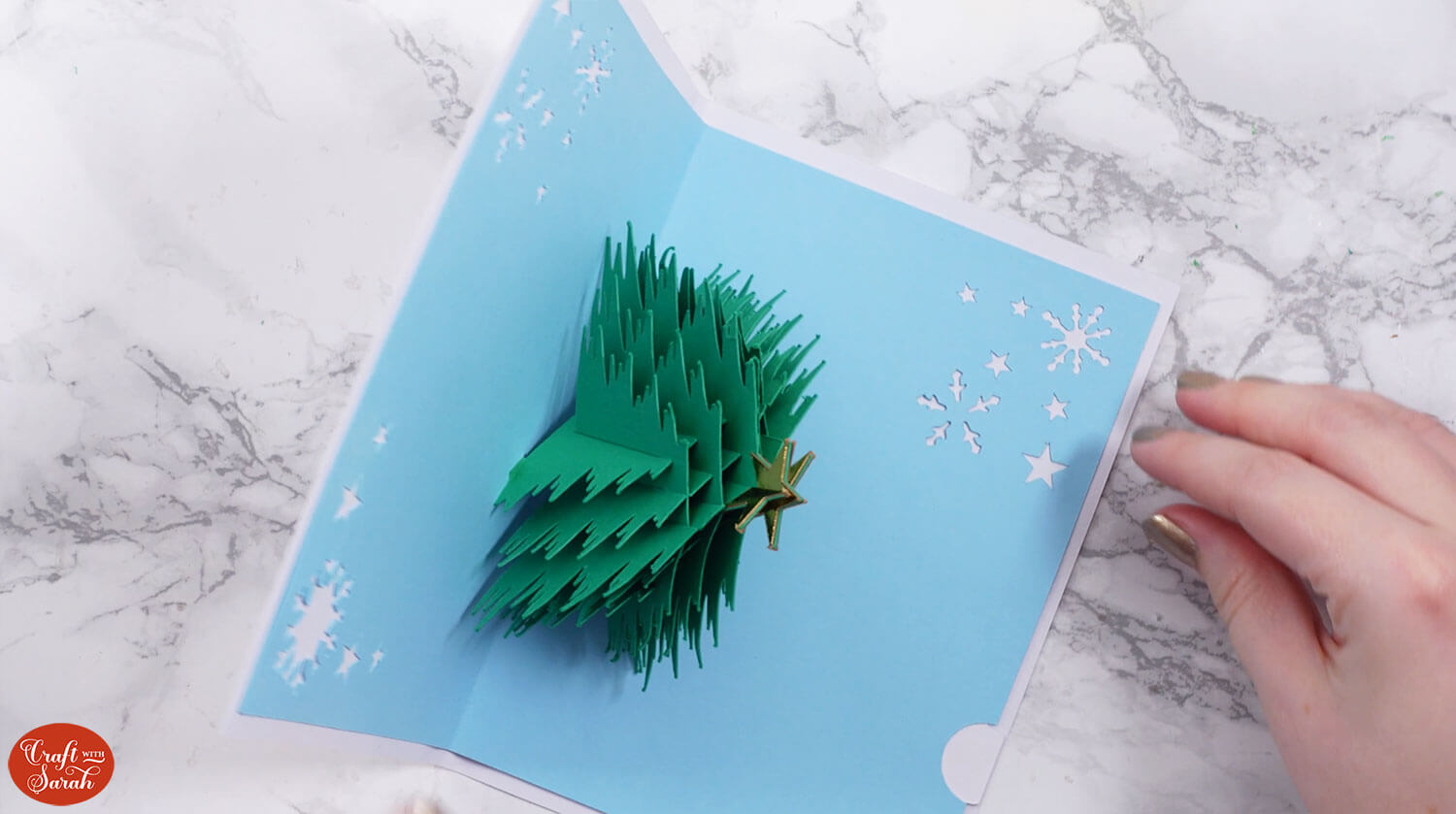

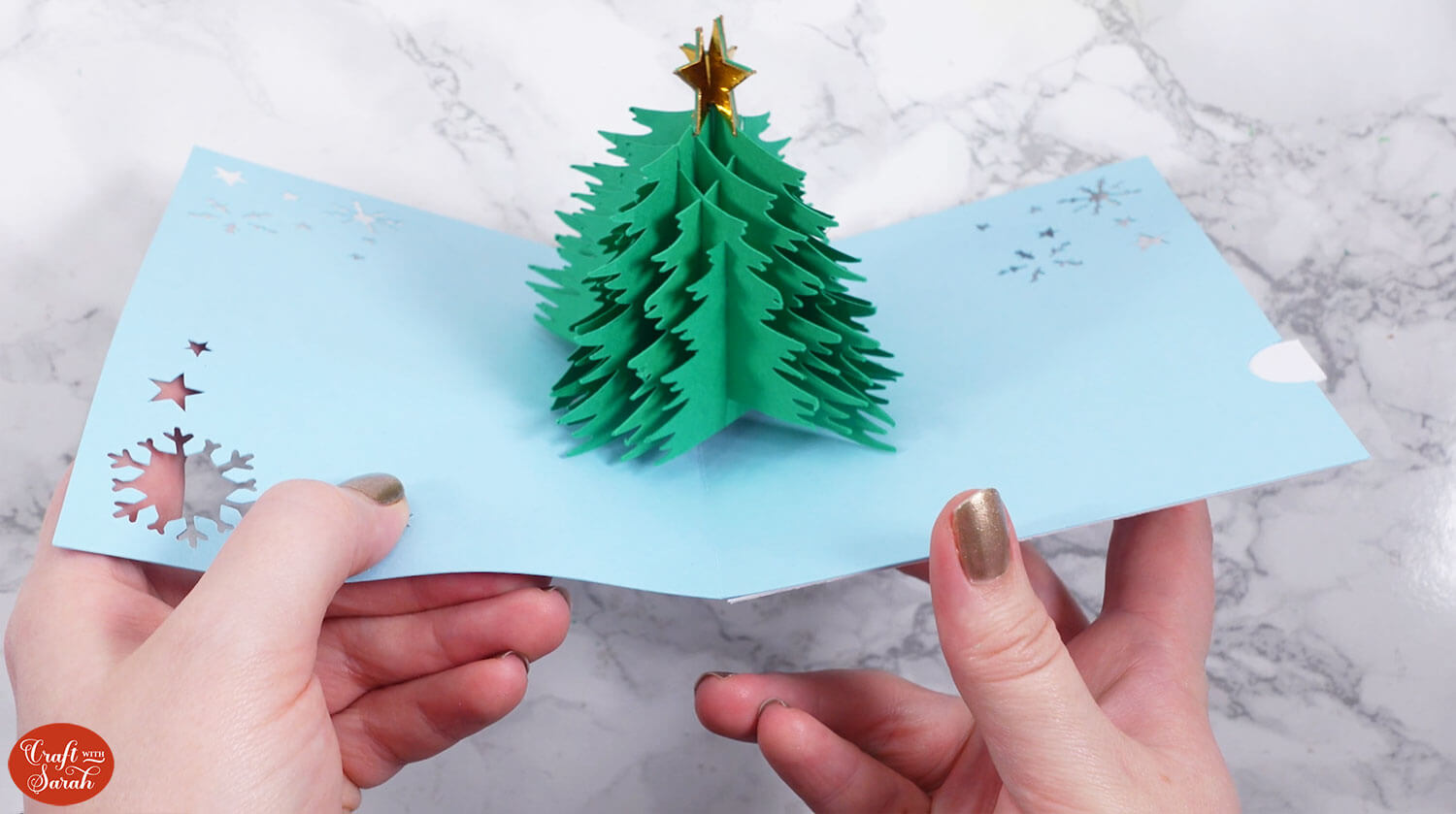

And there we have it! Your Christmas tree popout card is finished!

Need an envelope? Here’s how to make a 5×7 inch envelope.

Christmas tree pop up card

I hope you enjoy making this popout card. It’s so clever and the front is beautiful too.

I love how impressive this card is once it’s finished. It will be such a lovely surprise for whoever opens it up!
